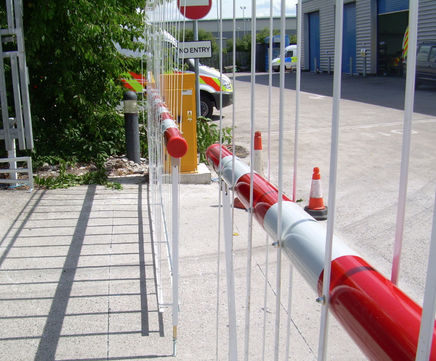

Product name EB950 Triumph automatic security barriers
Product code EB950
Type Automatic
Arm material Aluminium
Cabinet / post material Mild steel
Options Lift assist
Lockable
Safety loops
Skirt
Stop signs
Span (m) 9




The Avon EB950 Triumph Barrier is ideal for industrial car parks and security control; it can easily integrate with access control systems and is recommended for a wider road width or if signage, lights or drop skirts are required for the barrier arm (boom).

The barrier cabinet stands 1160mm above foundation level with the boom arm 960mm above foundation level.

Boom end supports to aid boom rigidity and straining wires are fitted for barrier arms in excess of 5m and where collapsible drop skirts are required.

The high duty cycling 24vdc linear actuator connects to the drive shaft via a torsion arm providing an operating speed of approximately 10 seconds.

An industrial grade gas strut is used to provide additional counterbalancing and dampening thus giving a smooth operation.

The steel cabinet is shot blasted, primed and powder coated as standard in RAL1007 (other colours available as an option) and houses the control panel, linear actuator with manual winding facility and the limit switches.

For safety reasons pedestrians, cyclists and motorcycles are advised not to use a barrier controlled roadway, additional safety measures can be incorporated into the barrier system if required. The barrier can be interfaced with existing or new access control systems.

Features

  • High duty cycling
  • Electro mechanical linear actuator
  • Fast acting
  • Multi-process coating specification
  • Modular design
  • Winding handle facility

Benefits

  • Reliability
  • Low maintenance
  • Service spares
  • Manual operation in the event of power failure
  • Ease of installation

Options available

  • Access control & intercom systems
  • Boom lights
  • Alternative cabinet colours available
  • Black / Yellow boom fascal
  • Inductive loop systems
  • Additional safety equipment including safety buffer, photo electric cell


The Avon EB950 Triumph Barrier is ideal for industrial car parks and security control; it can easily integrate with access control systems and is recommended for a wider road width or if signage, lights or drop skirts are required for the barrier arm (boom).

The barrier cabinet stands 1160mm above foundation level with the boom arm 960mm above foundation level.

Boom end supports to aid boom rigidity and straining wires are fitted for barrier arms in excess of 5m and where collapsible drop skirts are required.

The high duty cycling 24vdc linear actuator connects to the drive shaft via a torsion arm providing an operating speed of approximately 10 seconds.

An industrial grade gas strut is used to provide additional counterbalancing and dampening thus giving a smooth operation.

The steel cabinet is shot blasted, primed and powder coated as standard in RAL1007 (other colours available as an option) and houses the control panel, linear actuator with manual winding facility and the limit switches.

For safety reasons pedestrians, cyclists and motorcycles are advised not to use a barrier controlled roadway, additional safety measures can be incorporated into the barrier system if required. The barrier can be interfaced with existing or new access control systems.

Features

  • High duty cycling
  • Electro mechanical linear actuator
  • Fast acting
  • Multi-process coating specification
  • Modular design
  • Winding handle facility

Benefits

  • Reliability
  • Low maintenance
  • Service spares
  • Manual operation in the event of power failure
  • Ease of installation

Options available

  • Access control & intercom systems
  • Boom lights
  • Alternative cabinet colours available
  • Black / Yellow boom fascal
  • Inductive loop systems
  • Additional safety equipment including safety buffer, photo electric cell





Downloads
  • Avon EB950 Triumph Barrier Procurement Specification
    Avon EB950 Triumph Barrier Procurement Specification
    26.17KB
    Download
  • Avon EB950 Triumph Barrier Data Sheet
    Avon EB950 Triumph Barrier Data Sheet
    329.64KB
    Download
  • EB950 Triumph drawing
    EB950 Triumph drawing
    338.46KB
    Download
  • Avon Barrier Product Book 2020
    Avon Barrier Product Book 2020
    44pp 5.14MB
    Download
