MRA (manual rising arm) barriers are used for preventing hostile traffic access. They are designed for use in conjunction with perimeter protection systems.

Accreditation

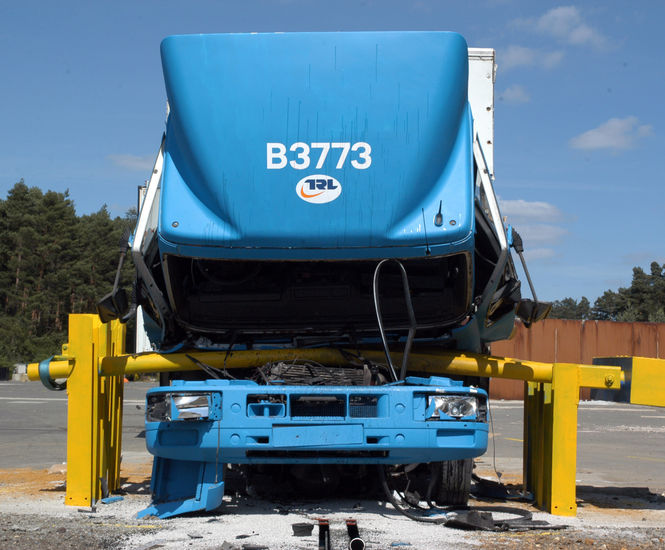

  • Impact-tested to PAS68:2010

  • Secured by Design approved

Versions

4m MRA PAS 68 Manual Barrier MK2
Manually operated rising arm barrier: 4m opening
Capable of stopping a vehicle at 30mph
PAS 68 rated at V7500/48/90-0.0-0.0

3m MRA PAS 68 Manual Barrier MK3
Manually operated rising arm barrier: 3m opening
Capable of stopping a vehicle at 50mph
PAS 68 rated at V3500/80/90-2.2-0.0

4.5m MRA PAS 68 Manual Barrier MK3
Manually operated rising arm barrier: 4.5m opening
Capable of stopping a vehicle at 30mph
PAS 68 rated at V7500/48/90:0.0/0.0

Key Features

  • Manual rising / drop arm barrier

  • Impact tested to BSi PAS 68

  • Impact posts stanchions

  • Rising beam is fully welded using a steel frame

  • Non powered rising/drop arm barrier

  • Boom lengths available 3, 4, & 4.5 metres

  • British Government Design and manufactured by Zaun Ltd

Specification

Manual Barrier MK2

  • PAS 68 Result: V/3500[N1]/80/90:2.2/0.0

  • Beam Height: 900mm

  • Beam Length: 4000mm

  • Barrier Type: Counter Balanced Barrier

  • Electrical Requirements: No Power Required

  • Civil Requirements: L: 1000mm x W: 1800mm x D: 500mm

Manual Barrier MK3

  • PAS 68 Result: V/7500[N2]/48/90:0.0/0.0

  • Beam Height: 900mm

  • Beam Length: 4000mm

  • Barrier Type: Counter Balanced Barrier

  • Electrical Requirements: No Power Required

  • Civil Requirements: L: 1000mm x W: 1800mm x D: 500mm
