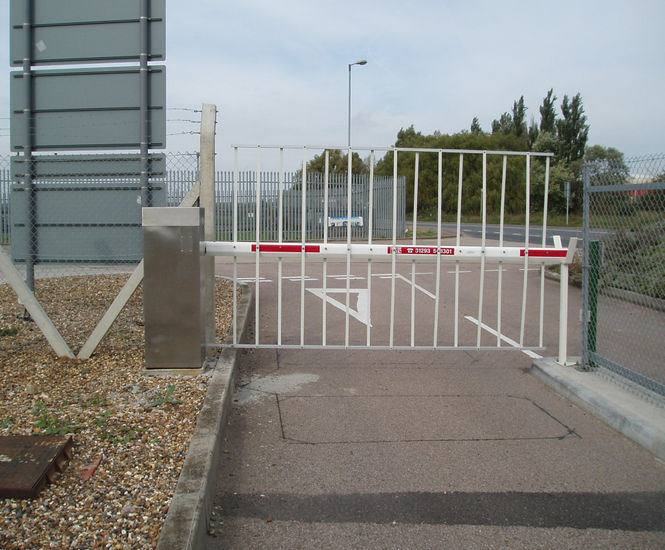

Frontier Pitts' automatic security barrier with a full-height swivel skirt above and below the boom is designed to control vehicle access while deterring climbing. Two versions are available: torque motor with a 5500mm maximum boom length; hydraulic motor with a 7500mm maximum boom length.

  • Automatic rising arm barrier with full height swivel skirt for added security

  • Skirt folds with the boom as it rises, acting as a deterrent to climbing

  • Torque motor version: 5500mm maximum boom length

  • Hydraulic motor version: 7500mm maximum boom length

  • 100% duty cycle for continuous operation

  • Compatible with a wide range of access control and safety systems

  • Programmable logic controller accepts multiple input types

Applications

  • Car parks

  • Logistics depots

  • Supermarkets

  • Oil refinery depots

  • Manufacturing plants

  • Sites requiring high security and vehicle control

Dimensions

Cabinet length 510mm

Cabinet width 460mm

Cabinet height 1280mm

Materials

Boom made from aluminium

Finish

Cabinet finished with de-greasing, shot blasting, zinc rich powder prime, and polyester powder coat

Boom powder coated white with red bands; special colours available

Options and variations

Boom lights, maglock, stainless steel cabinet, signs, traffic light systems

Performance

Operating speed 10–15 seconds, depending on boom length and motor

100% duty rating

Installation

Barrier foundation 800mm² x 600mm deep

Fixed end rest foundation 400mm² x 300mm deep

Power and control wiring ducts to be incorporated into foundations

Technical support

Technical sales support available
