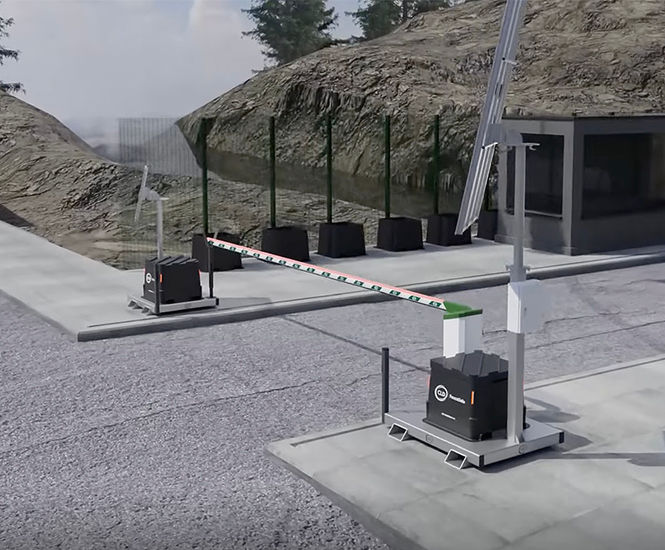

RiseMaster Solar is a fully autonomous, off-grid solar-powered automatic boom arm barrier system that powers access control systems such as intercoms and radio transmitters, making it Safety Force Test Compliant to EN 12453:2017.

This system is available in both surface mount version – freestanding and rapidly deployable – as well as permanent version, and is incorporated with photovoltaic panels. No road crossing cabling is required.

The FenceSafe battery container allows static equilibrium of the system and housing of the batteries to be combined within the same container.

Key features

  • 24/7 365 off-grid solar autonomy

  • Zero carbon emissions over 10-year life cycle

  • Continuous flanged post made from high-strength steel

  • No electrical supply required

  • 4G WiFi connectivity

  • WiFi access control

  • Wired safety devices to CAT2 accreditation

  • Intelligent force limitation

  • Remote support and first line response

Dimensions

Max span
8m

Pole
3–8m

Finish

Options:

  • Galvanised

  • Powder coated

Technical specifications

  • Description: Perimeter/car park 24/7 365 Off Grid Solar Autonomy barrier system

  • Daily Cycles: 3000 Daily Cycles Ultra Variant

  • Power Supply Requirements: Off-grid solar powered: No electrical supply required

  • Unit weight - 426Kg Primary Platform, 139kg Secondary Platform

  • Configuration - On ground free-standing primary platform & secondary receiver platform

  • Unit weight: 426Kg Primary Platform, 139kg Secondary Platform

  • Cabinet: Mild steel - removable sections for servicing access

  • Locking: Mechanical Automatic

  • Warranty: 12 months return to factory for purchased systems. Continuous site warranty for hired systems

  • Barrier construction: Mild steel cabinet, with aluminium boom arm profile. Rubber buffer profiles fitted to both the upper and lower faces of the aluminium boom arm

  • Additional features: Powered via the on-board solar system:

    • 4G WiFi connectivity

    • WiFi access control: intercoms, radio transmitters, other equipment

    • Wired safety devices to CAT2 accreditation

    • Remote Support & First Line Response

    • Continuous Powering of LED Boom Strip Lights (red/green)

    • Intelligent Force Limitation
