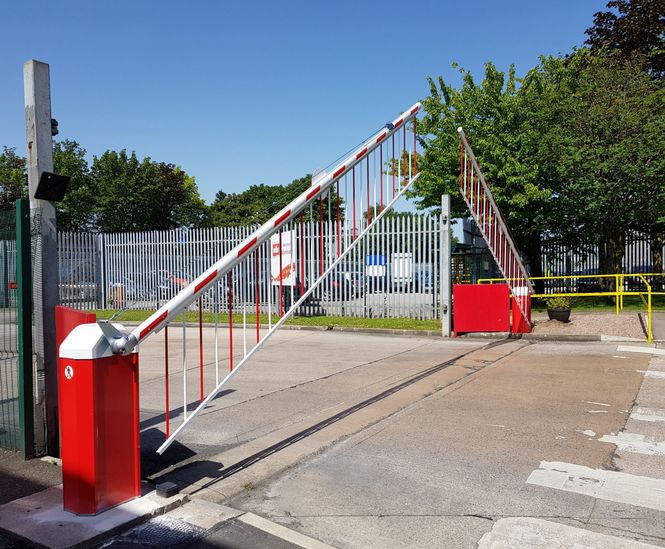

RiseGuard automatic rising arm barriers are used to control vehicle flow and access to restricted areas. Compatible with a wide range of access control systems, RiseGuard operates in a smooth motion powered by high torque with no springs or counterweights.

The beam can be fitted with an under-lattice or hi-bar skirt for additional security. As standard, arms and skirts are fitted with an 8k2 resistive safety edge and stop circuit to comply with safety standards.

Without a skirt the barrier will operate between 2 and 7 seconds. The programmes are pre-set in the control and can be easily changed by the end user.

Key features

  • CE approved

  • TUV approved

  • IP rating: IP56

  • Operates in temperatures from -20 to +65° (with a ventilation kit)

Security options

  • LED beam lights

  • Pogo end support posts

  • Under-lattice and/or hi-bar lattice

  • Beam-mounted sign brackets

  • Warning signs

Specifications

Material

Maximum Beam Length

Power

Colours

Aluminium and polyester powder coated

Beam only: 9m
With under lattice: 8m
With hi-bar security lattice: 6.5m

Single phase
240v 50Hz 10 amps

Red: Cabinet RAL3020 with a lid RAL 1016
Yellow: Cabinet RAL1003 with a lid RAL 9005
