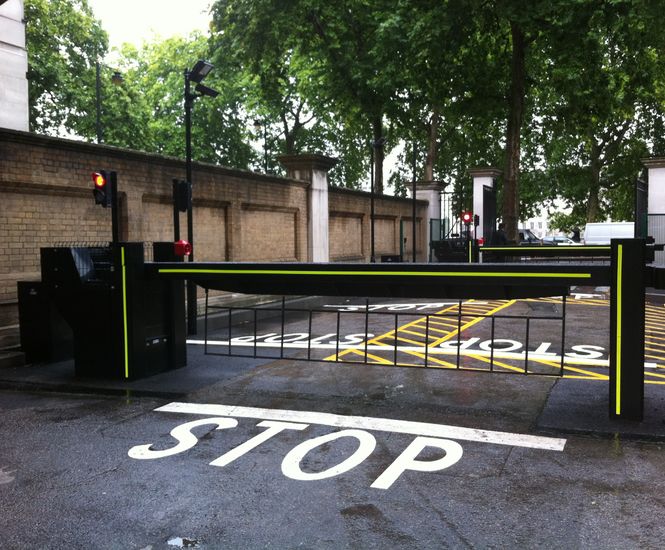

The Terra Ultimate automatic drop arm barrier has been successfully impact tested against a range of different energies.

Successfully impact tested to PAS 68 stopping a 7.5t vehicle travelling at 50mph (80kph) which equates to 1852kJ. On impact the barrier stopped the vehicle within the aperture.

The beam was retested for with under run skirt to test arresting capability on other vehicles such as saloon car vehicles. The automatic PAS 68 Terra Ultimate Barrier proved that it will stop low and high energy vehicles from entering site.

Industrial hydraulically operated automatic barrier. Designed for easy installation and maintenance.

The automatic Terra Ultimate Barrier can be interfaced to any access control systems.

  • Maximum width: 4500mm

  • PAS 68 tested dimensions: width 4500mm, crash beam height 1050mm

The PAS 68 Terra Ultimate Barrier is a PSSA Verified product. The Perimeter Security Suppliers Association has introduced a verification scheme to provide confidence to clients of the perimeter security industry and ensure that the associations members conform to internationally recognised quality standards.

  • PAS 68 Classification Code: V Drop Arm Gate 7500[N3]/80/90:5.3/2.0

  • Height: Boom height 1055mm

  • Width: Variable up to 4500mm

  • Construction: Special Manufactured impact posts. Manufacture to provide all rebar already formed Rising Beam is fully welded using a steel frame. Impact Beam fitted to stanchions at 1055mm height

  • Foundation Depth 400mm, Foundation Type B

  • Finish: Shotblasted, hot zinc sprayed (galvanised), primed and finished with a final coat of polyurethane paint. Client to advise RAL paint number. This process provides a 20-year corrosion protection system for exterior, industrial polluted inland sites to BS5493, 1977 (Revised 1984). Alternative finishes available on request.

  • Options: Accumulator – allows a number of operations in power failure mode, Manual Hand pump, High Security Cabinet, Anti-tamper alarms

  • Safety: Safety-edges, Vehicle Detector Loops, Safety Photocells, LED Traffic ligh heads, Flashing beacon, Audible alarm

  • Normal Operating Speed/Time: Typical operating speeds of 12-18 seconds to rise. Depending on length and configuration

  • Automatic Barrier EFO Speed: Depending on configuration

  • Automatic Barrier Duty Cycle: 100% duty rating

  • Controls: The programmable logic controller (PLC) with built in safety features will accept inputs from access control systems including access card, voice, etc. Push button as supplied as standard

Accreditations

  • Secured by Design

  • BRE Global
