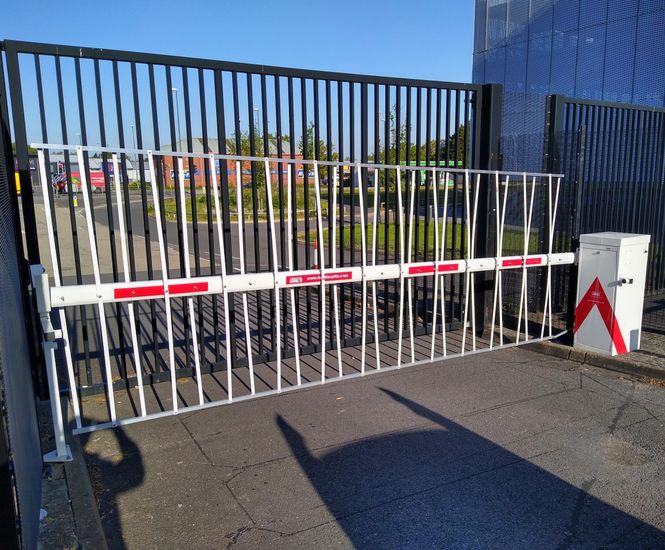

The HB heavy-duty, hydraulically-operated car park barrier system is designed to control vehicle access across entrances up to 10m wide. Suitable for high-security and high-traffic sites, it supports unlimited duty cycles and can be customised with lower folding or full height swivel skirts for added security.

  • Hydraulic automatic barrier for controlling vehicle access up to 10,000mm wide

  • Supports unlimited duty cycles for continuous operation

  • Customisable with lower folding skirts (up to 9000mm) or full height swivel skirts (up to 7500mm)

  • Compatible with a wide range of access control and safety systems

  • Programmable logic controller with built-in safety features

  • Optional accessories include boom lights, maglock, stainless steel cabinet and traffic light systems

  • Cabinet made from steel with a multi-stage powder coated finish; boom made from powder-coated aluminium

Applications

  • Car parks

  • Logistics depots

  • Ports

  • Supermarket depots

  • Commercial and industrial entrances

  • Sites requiring high security vehicle control

Dimensions

Maximum boom length 10,000mm

Lower folding skirt maximum boom length 9000mm

Full height swivel skirt maximum boom length 7500mm

Cabinet 510 (l) x 460 (w) x 1280mm (h)

Performance

Operating speed 10–15 seconds (dependent on boom length, motor, and skirt options)

100% duty rating

Materials

Cabinet made from steel

Boom made from aluminium

Colours

Boom powder-coated white with red bands

Special colours available

Finish

Cabinet finish includes de-greasing, shot blasting, zinc rich powder prime, and polyester powder coat

Options and variations

Lower folding skirt

Full height swivel skirt

Boom lights

Maglock

Stainless steel cabinet

Signs and traffic light systems

Installation

Barrier foundation 800mm² x 600mm deep

Fixed end rest foundation 400mm² x 300mm deep

Power and control wiring ducts to be incorporated into foundations

Accreditations

Secured by Design

BRE Global Civil Engineering
