V mesh fencing

Cordguard V-Mesh fencing panels have horizontal v-shaped beams to give them extra rigidity. Specification: mesh apertures are generally 200 x 50mm (approximately 100 x 50mm at the beam area); non-standard panel designs available; produced from galvanised wire to BS EN 10244-2:2001 class D; suitable for multi-lift

Protek 1000® by Alexandra Security is a welded steel v-mesh fence system designed for light-duty perimeter security, made from single wire panels with horizontal triangular folds and metal clip fixings. Mesh apertures allow high visibility and anti-climb properties, with heights from 1.2 to 3m and a galvanised finish for weather protection

Protek® 2000 by Alexandra Security is a welded medium-duty v-mesh fence system made from single wire panels with horizontal triangular folds, designed for secure, anti-climb perimeter boundaries with high visibility and a discreet appearance. Panels are joined with full-length clamp bars for added security

FenceSafe Eclipse was the first full Temporary Mesh Fencing system to offer all the aspects of a Rigid Mesh Fence in a temporary format. Using the Eclipse-60 by CLD Fencing Systems, FenceSafe Eclipse provides a profiled fencing system that can be converted to permanent at the end of the project. The patented cantilever base means that the

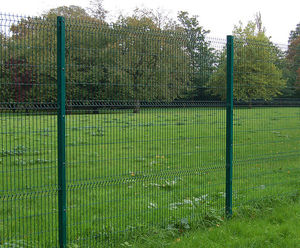

SolarGard Pulsar by Alexandra Security is a perimeter fencing system for energy storage compounds. Made from single-wire V-mesh panels with anti-climb folds and full-length clamp bar fixings. Complies with BS 1722-14 and is available in heights of 1.8m, 2.0m, and 2.4m: perimeter fencing system for energy and battery storage compounds; single-wire

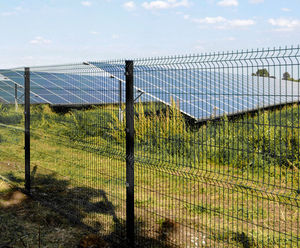

SolarGard Orbit fencing system for solar farm boundaries has anti-climb mesh panels and high through-visibility. Panels have ‘V’ folds for strength and are fixed to posts with metal clips. They can be stepped to follow ground contours. Wildlife access gates allow small animals to pass through without reducing security. Heights: 1.2-3m

Protek® 1000 & 2000 v-mesh security gates are steel gates made from welded single-wire mesh with horizontal triangular folds for strength and rigidity. Designed for anti-climb, single and double leaf versions are stocked in heights of 1.8m, 2m, and 2.4m, with double leaf widths of 3m, 4m, 5m, and 6m, powder-coated in RAL 6005 Moss Green: metal

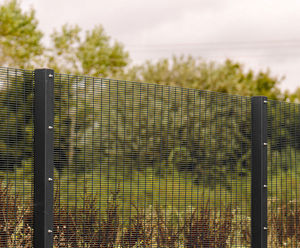

SolarGard Titan is a high-security fencing system made for solar farm perimeters. With tightly spaced single wire mesh panels and an LPCB SR1 security rating. Designed to prevent climbing and cutting, it meets UK police and insurance guidelines and includes wildlife access gates for environmental protection: high-security mesh fencing system for

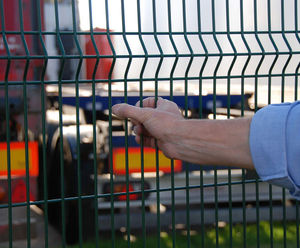

EuroGuard Extra is a welded mesh panel for high-risk applications. The panels thick vertical and horizontal wires and small mesh apertures are ideal for applications where security is a priority. EuroGuard Extra has "V" profile reinforcing folds which increase the panels rigidity and strength: unique vandal-proof panel to post fixing; strong

The Duo® Sports fencing system has a welded mesh panel construction consisting of two horizontal wires that sandwich vertical wires. It is suitable for light- or heavy-usage courts and pitches with MUGAs (multi-use games areas) in urban or rural settings. Posts have no protruding sharp edges and panel ends are protected by continuous clamp bars

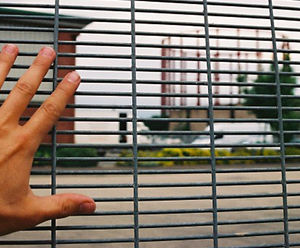

HiSec 358 security fencing system from Zaun is a welded mesh perimeter fence designed for high-security applications, using a 76.2 x 12.7mm mesh pattern to prevent climbing and intrusion. Panels can reach up to 7 metres in height and integrate with access control, CCTV, and security toppings: welded mesh security fence with anti-climb 358 mesh

Originally built in 1871, Selsted Church of England Primary School in south east Kent, was initially designed to house just 140 pupils, but in recent years it has undergone development to improve and modernise facilities and architecture. In 2017 the school, with support from the parents, purchased 0.65 acres of land adjacent to the playground to

CorruSec C5 (SR3) Rated Fencing by Zaun is a high-security perimeter fencing system made from three layers of welded mesh, independently tested to LPS1175 SR3 (D10) standards for a minimum 5-minute delay against hand and power tool attacks. Designed for critical infrastructure, it maintains clear visibility for CCTV: high-security perimeter

The Duo8 twin wire fencing panel system features two 8mm horizontal wires that sandwich 6mm vertical wires and a 50 x 200mm mesh pattern. It provides a strong and rigid perimeter fencing solution that is both aesthetically pleasing and provides a barrier to secure sites from potential trespassers, vandals and thieves. Duo8 is ideal for use with

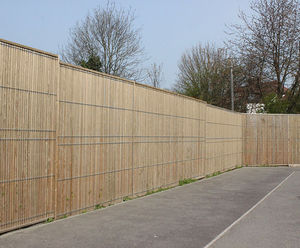

Protek® Privacy by Alexandra Security is a wire mesh security fence system with timber infill slats, designed for perimeter security and increased privacy. Made from welded mesh panels with made-to-measure timber inserts, it is suitable for high-wind areas and available in 1.8, 2.0 and 2.4m heights

EuroGuard® access control gates are designed to secure an entrance. Made from Flatform Medium and Heavy mesh types with a flat profile to complement EuroGuard® mesh fencing. EuroGuard® Combi Gates use EuroGuard® Regular mesh in the design with a timber infill to match fencing. Available in Flatform Heavy, Regular, Extra, and Combi, Jacksons

Zaun HiSec 358 Profile Mesh Security Fencing is a welded mesh anti climb perimeter system. Close 76.2 x 12.7mm mesh with a pressed V-beam for added rigidity, designed to prevent climbing and resist hand or power tool attacks. Suitable for integration with CCTV and security toppings: welded mesh security fencing with anti-climb design; tight mesh

Optima paladin style mesh fencing by Zaun is a contemporary perimeter fence system made from 4mm vertical and 5mm horizontal wires with a stripe mesh pattern and V-shaped pressings for added rigidity. Designed as a low-cost, visually appealing boundary solution, it uses 3-metre wide panels and clip fixings for quick installation and reduced post

St Joseph's is a one-form entry Catholic Primary Academy in Broadstairs, Kent, renowned for its pastoral care, with a mission to 'Aim High and Achieve Together'. A key focus of the school is the wellbeing of the children and staff. Situated on a busy road opposite the railway, the school boundary features original brick walls to the front

Axiom is a lightweight mesh fencing system for low-security perimeter demarcation, made from 5mm wires with large 200 x 50mm open mesh patterns and V-shaped pressings for rigidity. Designed for visual appeal and easy installation, it suits parks, schools and commercial sites where high security is not required

EuroGuard® Regular fencing and EuroGuard® Flatform gates were installed to provide a secure car park and entrance for shared facilities at Chigwell School. To fit with the schedule of works set out by the main contractor, Jacksons Fencing phased the installation

The Duo6 double wire perimeter fencing system combines a robust design with a low visual impact that will blend into any situation in both private and public sectors. Duo6 fencing is manufactured from dual horizontal 6mm wires sandwiching a single 5mm vertical wire producing a 50 x 200mm mesh pattern that is strong and vandal resistant. The extra

EuroGuard® Regular welded mesh panels are ideal for residential areas, commercial properties, schools or car parks. The V-shaped profile-reinforcing folds increase the panel’s rigidity and strength. Panels can be stacked above one another to form a higher fence. 25-year service life guarantee. Unique vandal-proof panel-to-post fixing

Lochrin WaveGUARD fencing is a cost-effective mesh panel fence system for basic demarcation, using 3 metre wide panels with profiled “V” beams for added strength and designed for use in environments requiring clear site boundaries: mesh fencing system for basic demarcation; 3 metre wide panels reduce labour and concrete use by up to 20% compared
