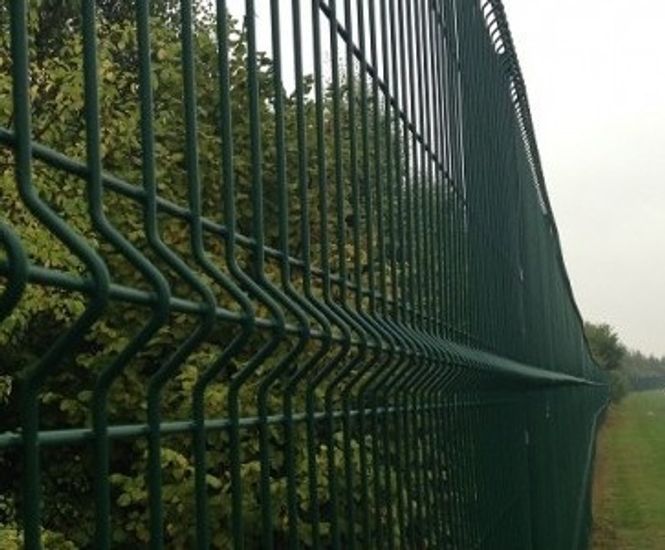

Lochrin WaveGUARD fencing is a cost-effective mesh panel fence system for basic demarcation, using 3 metre wide panels with profiled “V” beams for added strength and designed for use in environments requiring clear site boundaries.

  • Mesh fencing system for basic demarcation
  • 3 metre wide panels reduce labour and concrete use by up to 20% compared to 2.5 metre systems
  • Profiled “V” beams increase rigidity
  • Mesh aperture 200mm x 50mm for visibility
  • Anti-tamper fixings deter vandalism and forced entry
  • Panels available in heights of 1230mm, 1730mm, 1930mm, 2330mm
  • Conforms to BS 1722-14:2017 requirements

Applications

  • School perimeters
  • Commercial unit boundaries
  • Hospital grounds
  • General site demarcation

Dimensions

Panel widths: 3000mm

Panel heights: 1230mm, 1730mm, 1930mm, 2330mm

Mesh opening: 200mm x 50mm

Horizontal wire: 5mm thick

Vertical wire: 4mm thick

WaveGUARD post size: 60mm x 60mm

Materials

Panels and posts made from steel

Finish

Polyester powder coated Green RAL 6005

Options and variations

Panel heights: 1230mm, 1730mm, 1930mm, 2330mm

Installation

Panels mounted to the face of posts using security clips fixed with Lochrin anti-tamper bolts

Product accreditations

Conforms to BS 1722-14:2017
