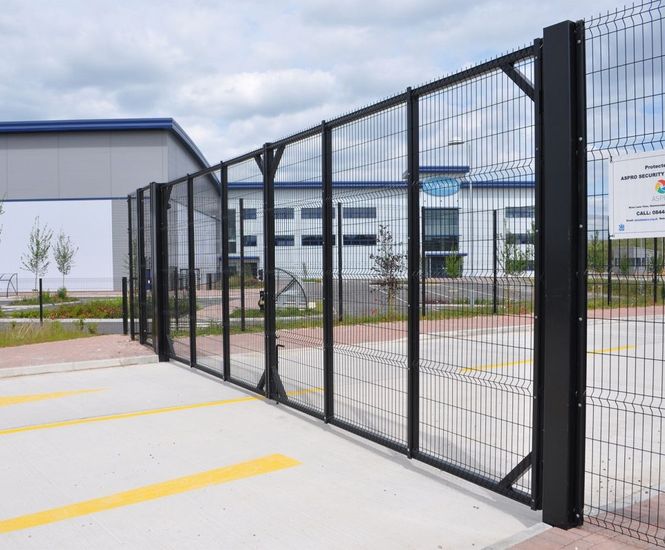

Protek® 1000 & 2000 v-mesh security gates are steel gates made from welded single-wire mesh with horizontal triangular folds for strength and rigidity. Designed for anti-climb, single and double leaf versions are stocked in heights of 1.8m, 2m, and 2.4m, with double leaf widths of 3m, 4m, 5m, and 6m, powder-coated in RAL 6005 Moss Green.

  • Metal security gates for perimeter fencing, matching Protek 1000 and 2000 mesh fences

  • Anti-climb design

  • Single and double leaf options for pedestrian and vehicle access

  • Inverted hinges prevent lift-off, padlockable side-latch as standard

  • Custom sizes and colours available on request

  • Compatible with digital locks, self-closing hinges, maglocks, and panic latches

Applications

  • School boundaries

  • Public areas

  • Retail parks

Dimensions

Heights: 1.8m, 2m, 2.4m

Double leaf widths: 3m, 4m, 5m, 6m

Materials

Galvanised steel mesh panel wire to BS 4102

Galvanised steel posts to BS EN 10210-2:1997

Finish

Galvanised to BS EN 10244-2:2001 class D (mesh), BS EN 10346:2009 (posts)

Powder coated to BS EN 13438:2005, minimum 100 micron, RAL 6005 Moss Green

Options and variations

Single or double leaf gates

Custom sizes and colours

Gate accessories: digital locks, self-closing hinges, maglocks, panic latches

Installation

Drop-bolts and ground sockets for double leaf gates

Manufacture

All welding to BS EN 1011-1 and BS EN 1011-2 by qualified personnel to BS EN 287-1

Product accreditations

Mesh panel wire to BS 4102

Galvanising to BS EN 10244-2:2001 class D and BS EN 10346:2009

Powder coating to BS EN 13438:2005

Posts to BS EN 10210-2:1997
