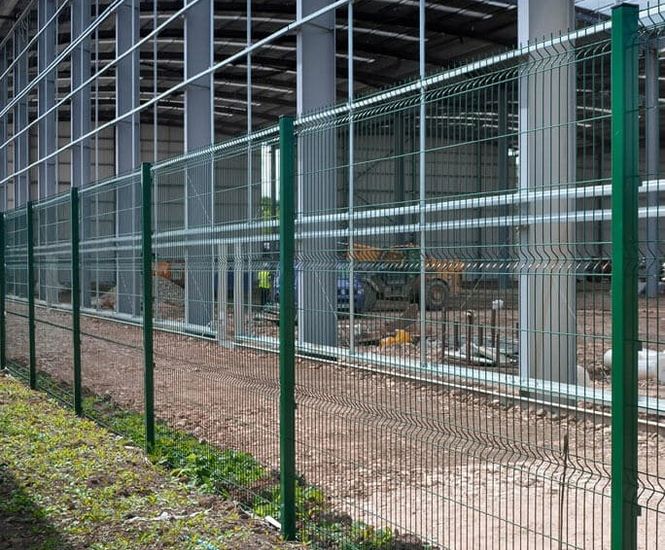

Protek 1000® by Alexandra Security is a welded steel v-mesh fence system designed for light-duty perimeter security, made from single wire panels with horizontal triangular folds and metal clip fixings. Mesh apertures allow high visibility and anti-climb properties, with heights from 1.2 to 3m and a galvanised finish for weather protection.

  • Welded v-mesh fence system with anti-climb and high visibility design

  • Horizontal triangular folds increase strength and rigidity

  • Metal clip system allows for easy installation and stepped alignment

  • Child-friendly and suitable for public areas

  • Galvanised finish for long-term weather resistance

  • Optional polyester powder coating in various colours

  • Custom options include base-plated or cranked posts and CAD drawings

Applications

  • School boundaries

  • Public areas

  • Retail parks

  • General perimeter protection

Specification

Nominal Fence Height (m)

Panel Size Height x Width (mm)

Post Centres (mm)

No. ‘V’ Bars per Panel

Overall Length of Post (mm)

Post Size (mm)

No. Clips Per Post

No. Clips Per Corner

1.2

1,230 x 3,005

3,030

2

1,800

60 x 60

3

6

1.8

1,730 x 3,005

3,030

3

2,400

60 x 60

4

8

2.0

1,930 x 3,005

3,030

3

2,600

60 x 60

4

8

2.4

2,330 x 3,005

3,030

3

3,100

60 x 60

5

10

3.0

2,930 x 2,455

2,480

4

3,750

60 x 60

6

12

Materials

Mesh panel wire made from steel

Finish

Galvanised to BS EN 10244-2:2001 class D

Optional polyester powder coat in various colours

Options and variations

Panels can be inverted for flat top

2.51m post centres as special order

Spigotted base plates for bolt-down installation

Installation

Panels fixed with metal clips and pre-drilled posts

Panels can be stepped to follow ground contours

Vandal-resistant security fixings

Hooked caps supplied for installation

Performance

Weld strength is 75% of the wire

Product accreditations

Mesh panel wire manufactured to BS 4102
