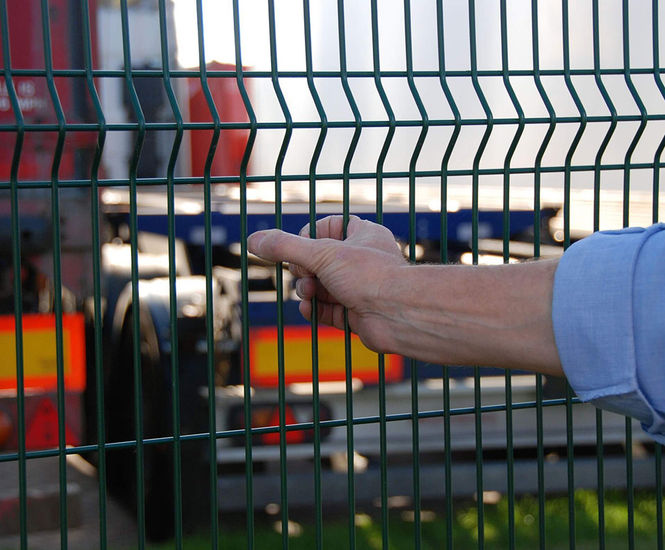

EuroGuard Extra is a welded mesh panel for high-risk applications.

The panels thick vertical and horizontal wires and small mesh apertures are ideal for applications where security is a priority.

EuroGuard Extra has "V" profile reinforcing folds which increase the panels rigidity and strength.

Key Features

  • Unique vandal-proof panel to post fixing

  • Strong anti-climb design

  • Can be stepped to accommodate sloping ground

  • Post can be adapted to mount CCTV cameras, lighting or physical security devices

  • Matching swing and sliding gates available

Finishes

  • Panels are Galfan® zinc alloy coated, posts galvanised

  • Galvanised and powder coated to BS EN 13438 in any standard or special colour at extra cost

  • Marine coat for installations within 500m of salt water or an estuary

EuroGuard® Extra Panel Specifications

Height (mm)

Post Centres (mm)

Post Dimensions (mm)

Overall Post Length (mm)

2010

3054

80 x 60

2800

2410

3054

80 x 60

3300
