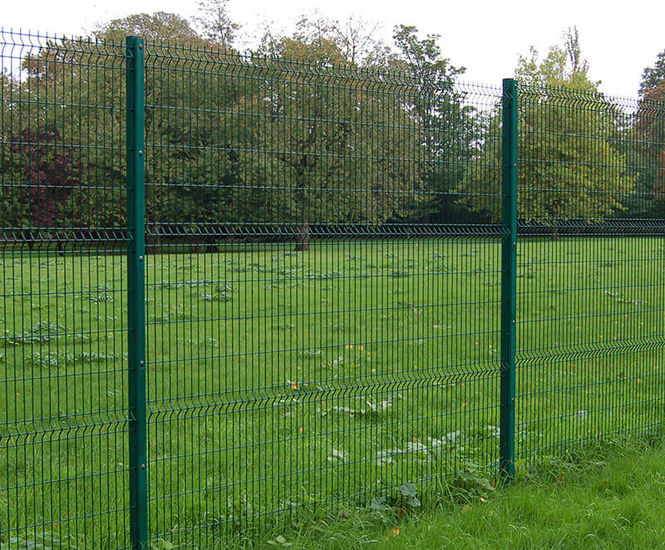

SolarGard Pulsar by Alexandra Security is a perimeter fencing system for energy storage compounds. Made from single-wire V-mesh panels with anti-climb folds and full-length clamp bar fixings. Complies with BS 1722-14 and is available in heights of 1.8m, 2.0m, and 2.4m.

  • Perimeter fencing system for energy and battery storage compounds

  • Single-wire V-mesh design with anti-climb folds

  • Full-length metal clamp bars for secure, tamper-resistant installation

  • 40-year guarantee for long-term durability

  • Colour choices: RAL 6005 Moss Green or RAL 9005 Black

  • Marine powder coating option for coastal protection

Applications

  • Energy storage facility fencing

  • Solar farm perimeter fencing

  • Utility site boundary protection

Dimensions

Heights: 1.8, 2.0, 2.4m

Panel height x width: 1,730 x 2,500mm (1.8m), 1,930 x 2,500mm (2.0m), 2,330 x 2,500mm (2.4m)

Post centres: 2,510mm

Overall post length: 2,400mm (1.8m), 2,600mm (2.0m), 3,150mm (2.4m)

Post size: 60 x 40mm

Materials

Mesh panel wire made from steel to BS 4102

Finish

Galvanised to BS EN 10244-2:2001 class D

Powder coated in RAL 6005 Moss Green or RAL 9005 Black

Double-layer marine powder coating for coastal sites

Options and variations

Fence heights: 1.8m, 2.0m, 2.4m

Custom post types: base-plated, cranked

Performance

40-year guarantee

Installation

Panels secured to posts with full-length clamp bars and fixings

Panels can be stepped to follow ground contours

Vandal-resistant security fixings

Product accreditations

Conforms to BS 1722-14:2017

Technical support

Custom CAD drawings and project-specific design support
