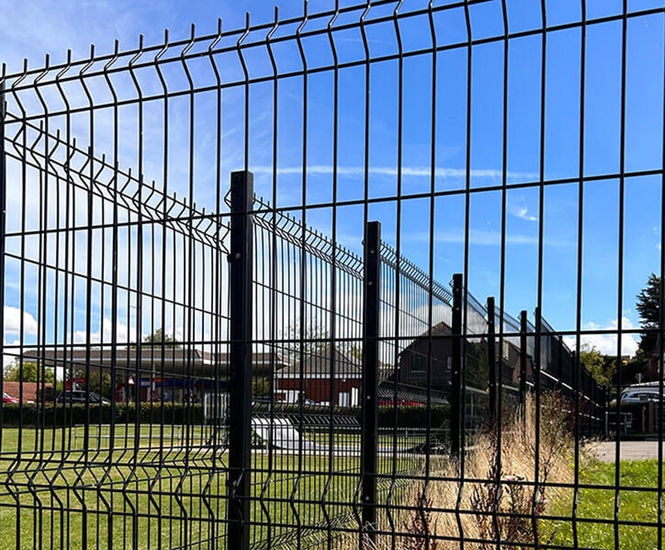

EuroGuard® Regular welded mesh panels are ideal for residential areas, commercial properties, schools or car parks.

The V-shaped profile-reinforcing folds increase the panel’s rigidity and strength.

Panels can be stacked above one another to form a higher fence.

25-year service life guarantee.

Key features

  • Unique vandal-proof panel-to-post fixing

  • Strong anti-climb design

  • 5mm wire, measured before coating

  • 200 x 50mm mesh

  • Conforms to BS EN 1722-14

  • Can be stepped to accommodate sloping ground

  • Matching gates available

  • 25-year service life guarantee

Finishes

  • Panels are Galfan® zinc alloy coated, posts galvanised

  • Galvanised and powder coated to BS EN 13438 in any standard or special colour at extra cost

  • Marine coat for installations within 500m of salt water or an estuary

Specifications

Height (mm)

Post Centres (mm)

Post Dimensions (mm)

Overall Post Lengths (mm)

1525

3034

60 x 40

2100

1810

3034

60 x 40

2500

2010

3034

60 x 40

2800

2410

3054

80 x 60

3300
