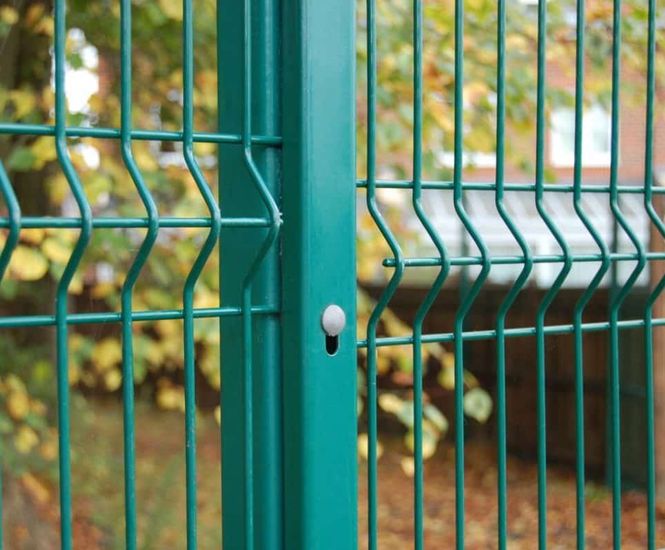

Protek® 2000 by Alexandra Security is a welded medium-duty v-mesh fence system made from single wire panels with horizontal triangular folds, designed for secure, anti-climb perimeter boundaries with high visibility and a discreet appearance. Panels are joined with full-length clamp bars for added security.

  • Medium-duty welded mesh fence system for secure boundaries

  • Single wire panels with V-shaped folds for strength and rigidity

  • Full-length clamp bar fixings for vandal resistance

  • High through-visibility and blends with surroundings

  • Child-friendly and anti-climb design

  • Panels can be stepped to follow ground contours

  • Galvanised finish with optional polyester powder coating in various colours

Applications

Schools

Public buildings

Retail parks

Business premises

Specification

Nominal Fence Height (m)

Panel Size Height x Width (mm)

Post Centres (mm)

No. ‘V’ Bars per Panel

Overall Length of Post (mm)

Post Size (mm)

Ends/Inters (1 Clamp)

Corners (2 Clamps)

1.8

1,730 x 2,500

2,510

3

2,400

60 x 40

4

8

2.0

1,930 x 2,500

2,510

3

2,600

60 x 40

4

8

2.4

2,330 x 2,500

2,510

3

3,150

60 x 40

5

10

Materials

Mesh panel wire made from steel to BS 4102

Posts made from steel to BS EN 10210-2:1997

Finish

Galvanised to BS EN 10244-2:2001 class D

Optional polyester powder coating to BS EN 13438:2005 (min 100 micron)

Options and variations

Panel heights: 1.8m, 2.0m, 2.4m

Panels can be inverted for flat top

Colour options: green, black, others on request

Performance

Weld strength: 75% of minimum tensile strength (540-690 N/m²)

Installation

Panels fixed with full-length clamp bars and vandal-resistant fixings

Panels can be stepped for uneven ground

Product accreditations

Mesh wire to BS 4102

Galvanising to BS EN 10244-2:2001 class D

Posts to BS EN 10210-2:1997

Panels and posts powder coated to BS EN 13438:2005
