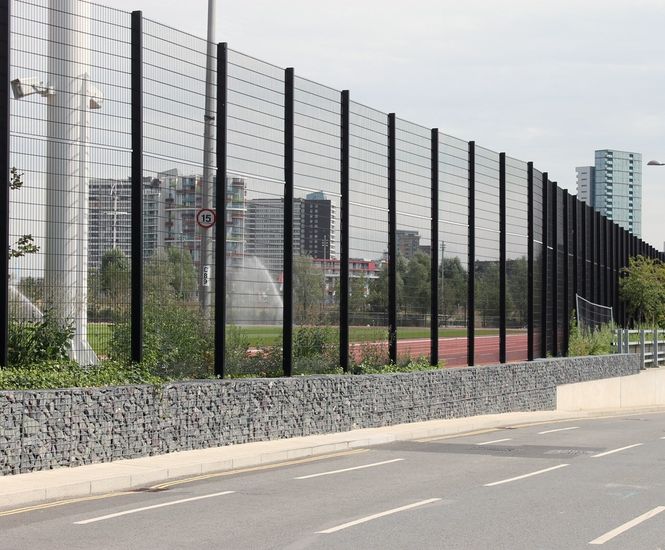

The Duo8 twin wire fencing panel system features two 8mm horizontal wires that sandwich 6mm vertical wires and a 50 x 200mm mesh pattern.

It provides a strong and rigid perimeter fencing solution that is both aesthetically pleasing and provides a barrier to secure sites from potential trespassers, vandals and thieves.

Duo8 is ideal for use with CCTV camera systems as the open mesh aperture provides excellent visibility of anyone trying to breach the perimeter. The welded mesh twin wire fencing system provides a rigid, robust and strong panel that is ideal for perimeter fencing solutions.

It is available with either clamp bar or ZaunFix fixing options to fixing to the posts. The full length clamp bar provides additional security for any intruders trying to break into the fence line and can be provided in an SR1 version (see Duo8 SR1).

Panels can be supplied with a choice of fence toppings and integrated solutions to provide a full turnkey perimeter solution.



Features and benefits

  • Strong and robust
  • Twin 8mm horizontal wires
  • High level of vandal resistance
  • High visibility open mesh pattern
  • Monitor site without restriction
  • Secured By Design approved

Options

  • LPCB LPS1175 SR1 Rated
  • Safety capping for low level fences
  • Standard or minimal projections at the top of the panel
  • V-Beam to increase strength
  • Bolt down, in ground or on wall installation
  • Complementary pedestrian and vehicle gates

Finishes

All Zaun posts/panels/gates and painted auxiliary components (for example, clamp-bars, slide bolts etc.) benefit from a protective zinc layer and electrostatically applied polyester powder coating to BS1722 p16.

Posts & Fixings

Duo 8 double wire mesh fencing system has a post and clip configuration, which is simple and easy to install. Supplied with vandal-proof security fixings. Installed using either power or hand tools.

Sloping Ground

Panels may be stepped in increments of 30mm as required within the clamp bar system.

It is recommended that the taller panels are either partially buried or additional posts are used on steeper gradients.

Specification

Height
1230, 1830, 2030, 2430mm
Other heights are available upon request

Panel Width
2510mm / Optional 3010mm

Mesh Size
200mm x 50mm

Wire Diameter
6mm Verticals / 2 x 8mm Horizontals

Top Edge Projection
22mm Projection as Standard
Optional Flush

Post Size
60 x 60

Fixing Method
Clips

Post Centres
2525mm

Fixing Centres
400mm

Fixings
Anti Tamper Security Fixings
