Installation Standard foundations
Blocker width (mm) 2150
Raised height (mm) 350

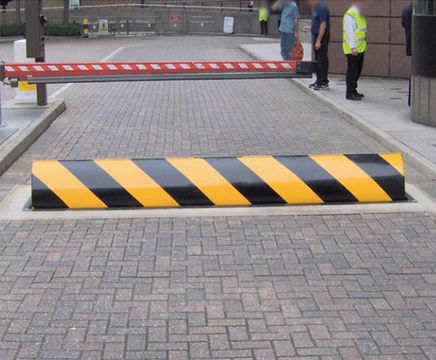

The Avon RB680 Roadblocker comes in a variety of widths to suit specific site requirements, with a blocking segment height of 350mm.

Construction

The road blocker is constructed from heavy-welded steel section to provide sufficient strength to exceed British axle loads. A heavy-duty durbar top plate is coated with safety markings, with removable access covers to enable efficient installation and servicing.

On installation, the entire enclosure is encased by concrete with construction, subject to site ground conditions.

Operation

The RB680 road blocker is operated by an hydraulic ram with the power unit (HPU) positioned locally within an externally rated cabinet. The mechanism is encased in a galvanised sheet steel enclosure and has access points for onward connection to ducting for hydraulic hoses and control cables.

Push-button control as standard

Options

  • Can be customised to interface with a wide range of access control equipment such as inductive loop systems, card readers, communication equipment and manned guard emergency systems.
  • Where the RB680 road blocker control point is remote from the installation, Avon Barrier recommends the fitting of a recordable CCTV system, traffic lights and safety inductive loop systems.


The Avon RB680 Roadblocker comes in a variety of widths to suit specific site requirements, with a blocking segment height of 350mm.

Construction

The road blocker is constructed from heavy-welded steel section to provide sufficient strength to exceed British axle loads. A heavy-duty durbar top plate is coated with safety markings, with removable access covers to enable efficient installation and servicing.

On installation, the entire enclosure is encased by concrete with construction, subject to site ground conditions.

Operation

The RB680 road blocker is operated by an hydraulic ram with the power unit (HPU) positioned locally within an externally rated cabinet. The mechanism is encased in a galvanised sheet steel enclosure and has access points for onward connection to ducting for hydraulic hoses and control cables.

Push-button control as standard

Options

  • Can be customised to interface with a wide range of access control equipment such as inductive loop systems, card readers, communication equipment and manned guard emergency systems.
  • Where the RB680 road blocker control point is remote from the installation, Avon Barrier recommends the fitting of a recordable CCTV system, traffic lights and safety inductive loop systems.
