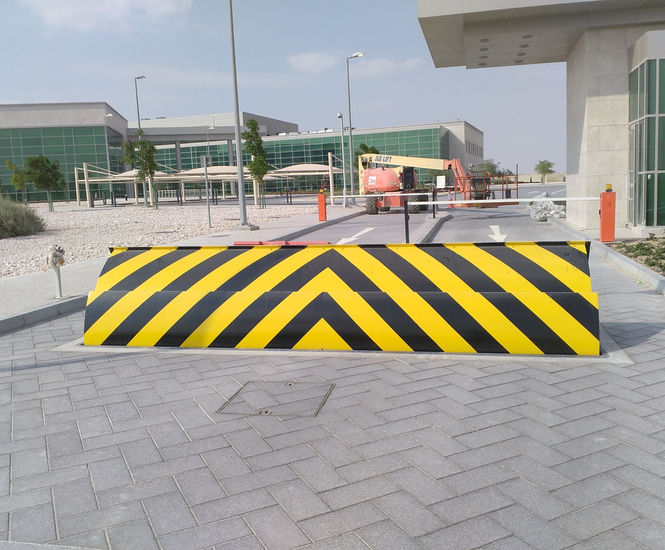

Terra Blocker by Frontier Pitts is a hydraulically-driven hostile vehicle mitigation (HVM) road blocker, impact tested to IWA 14 standards to stop a 7.2 tonne vehicle at 50mph with zero penetration. Designed for high-security vehicle access points, it is made from heavy steel, hot dip galvanised, and finished with anti-skid paint. Widths up to 5000mm, 1000mm lift height. Secured by Design.

  • Hydraulic road blocker for hostile vehicle mitigation, tested to IWA 14 standards

  • Stops a 7.2t vehicle at 50mph with zero penetration (P1 rating)

  • Hot dip galvanised steel with anti-skid, laboratory-tested top plate finish

  • Widths up to 5000mm, tested at 3000mm width and 1000mm lift height

  • Traffic light system included as standard

  • Compatible with access control systems and programmable logic controller (PLC)

  • 100% duty cycle, normal operation 4–6 seconds, EFO 2–3 seconds

  • Secured by Design and BRE Global accredited

Applications

  • Critical infrastructure protection

  • Government and military sites

  • Airports and transport hubs

  • Data centres

  • Commercial and industrial premises

  • High-security entrances

Dimensions

Width: up to 5000mm

Tested width: 3000mm

Lift height: 1000mm

Performance

Impact-tested to IWA 14: 7.2t at 50mph, zero penetration (P1)

Axle loading: 24 tonnes

Normal operating speed: 4–6 seconds

EFO speed: 2–3 seconds

100% duty cycle

Materials

Heavy steel section with steel front plate and covers

Finish

Shotblasted, hot dip galvanised, primed, polyurethane top coat

Anti-skid, laboratory-tested paint available

Options and variations

Accumulator for power failure operation

Manual hand pump

High security cabinet

Anti-tamper alarms

Installation

Foundation Type C

Accreditations

IWA 14

Secured by Design

BRE Global
