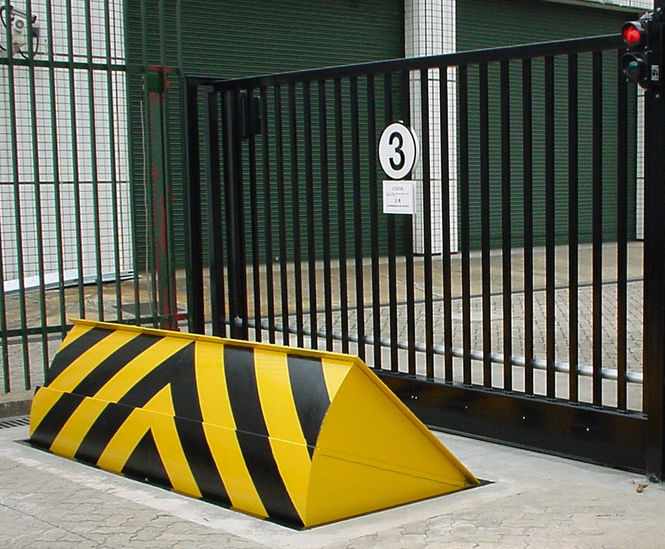

Frontier Pitts security-height road blockers are heavy-duty vehicle barriers designed to control access and prevent unauthorised entry at high-security sites. Made from steel, these blockers have lift heights of 353 or 533mm and widths up to 5000mm, with a 100% duty rating for continuous use. Integrated traffic lights and compatibility with access control systems are standard.

  • High-security vehicle barrier with selectable lift heights and wide span options

  • Made from heavy steel with a galvanised and polyurethane painted finish

  • Operates on a three-phase 400V power supply

  • Includes traffic light system and internal skirt lighting for visibility

  • Manual hand pump and accumulator options for power failure operation

  • Industrial hydraulic pump and reinforced hoses for long service life

  • Accepts inputs from access control systems and push button as standard

Applications

  • Banks

  • Embassies

  • Bullion depots

  • Cargo parks

  • Ports

  • Lorry parks

  • Key sites requiring anti-ram protection

Dimensions

Lift height: 353 or 533mm

Width: up to 5000mm

Blocker foundation: blocker width + 630mm x 800mm (L) x 465mm (embedment depth)

Control cabinet foundation: 800mm square x 300mm depth

Performance

Speed of operation: 3–6 seconds

100% duty rating for continuous use

Materials

Heavy steel section with steel front plate and covers

Colours

Custom RAL paint number specified by client

Finish

Shotblasted, hot zinc sprayed (galvanised), primed, polyurethane paint

Anti-slip paint for road vehicles available

Options and variations

Accumulator for power failure operation

Extra Fast Operation (EFO)

Manual hand pump

High security cabinet

Anti-tamper alarms

Installation

Hydraulic control cabinet recommended within 10m of blocker

Power and control wiring ducts to be incorporated into foundations

Accreditations

Secured by Design

BRE Global

Complies with BS EN 12453 (subject to risk assessment and configuration)
