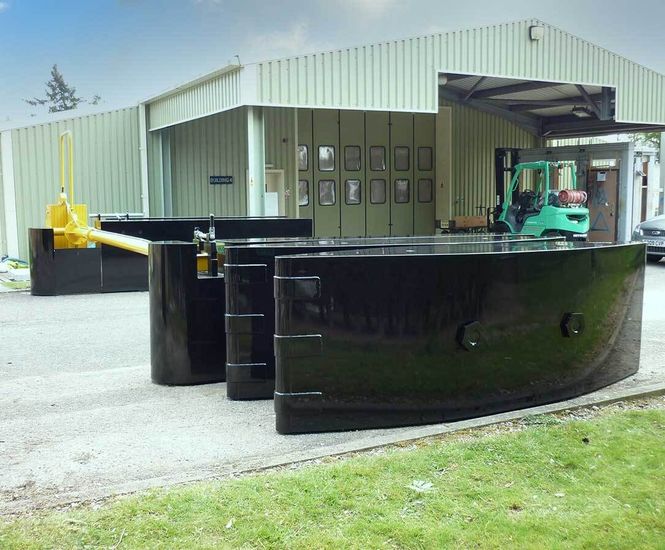

Systra Barges are temporary perimeter barriers made from steel panels filled with concrete, designed for hostile vehicle mitigation (HVM) to protect sites from vehicle-borne attacks and explosive blasts. Units are re-deployable, connectable, and suitable for rapid installation at security-sensitive locations.

  • Temporary HVM barrier system for site perimeter protection

  • Impact and blast resistance tested to BSI PAS 68 standards

  • Quick to deploy and reconfigure for changing site needs

  • Connects with other HVM products using standard connectors

  • Painted in high-visibility black and yellow as standard

  • Available with bespoke colour schemes and reflective options

Applications

  • Event security perimeters

  • Temporary protection for vulnerable sites

  • Transport hubs and utilities

  • Emergency service locations

  • Operational continuity during site changes

Dimensions

  • Length 2854mm

  • Weight 3000kg

Performance

  • PAS 68 impact tested: V/1500KG M1 120kph 0.6m penetration

  • PAS 68 impact tested: V/7500KG N2 50kph 1.0m penetration

  • PAS 68 impact tested: V/7500KG N2 64kph 2.0m penetration

  • PAS 68 impact tested: V/7500KG N3 64kph 5.4m penetration

  • Ballistics tested BR7 7.62mm A.P and 12.7mm A.P with no spall to BS EN 1063

Materials

Made from steel panels with welded transverse bars, filled with ready mixed concrete

Colours

  • Standard black and yellow

  • Bespoke RAL colour schemes available

Finish

Two-coat paint system

Options and variations

Bespoke RAL colours, reflective tapes, signage, embellishments

Accreditations

  • BSI PAS 68:2010

  • Ballistics tested BR7 7.62mm A.P and 12.7mm A.P with no spall to BS EN 1063
