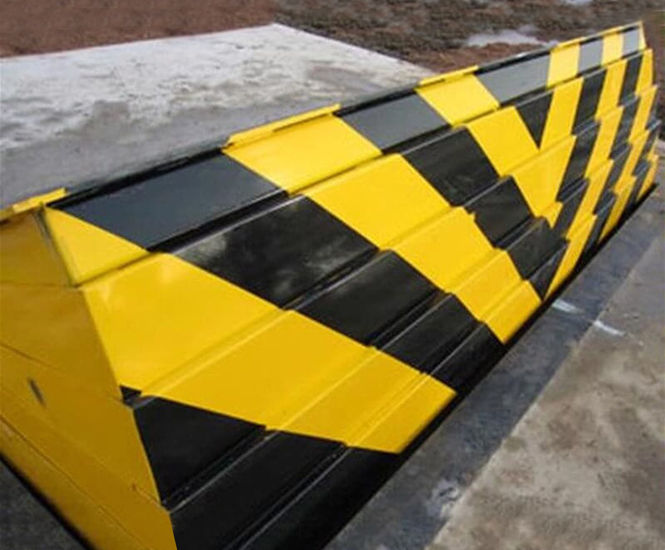

The Crash Rated Shallow Mount Road Blocker has been designed to prevent the threat of potential terrorist attacks where high security is required.

Crash rated at MIRA (Motor Industry Research Association) and passing 100% with ‘0’ penetration and still operational after use. It is driven via a hydraulic 7.5Kw power pack with inverter/plc controls which requires a three phase supply.

IWA 14-1 crash rated shallow mount road blocker standard features include:

  • High grade PFC and RHS

  • Aluminium curtain, 3mm skirt

  • Panels in 5 sections

  • Raised position height at 1050mm

  • Government sites: shallow 400mm nominal foundations

  • Easy removal on impact

  • 3 phrase supply 415 VAC

  • PLC & inverter controlled

  • Performance Classification: IWA14-1:2013 Blocker V/7200[N2A]/80/90:0.6

  • Fully welded heavy duty steel sections

  • Designed for axle weights of 12 tonne

  • 450mm foundation depth

Crash Rated Shallow Mount Road Blocker Specification

Rated Height (mm)

Rated Widths (mm)

 1050

2000-4000
