Product name BambooWall® noise barrier
Suitability Residential property
Finish material Timber / wood
Absorbent / reflective Sound absorbent
Dimensions (w x h) 250 x 300cm

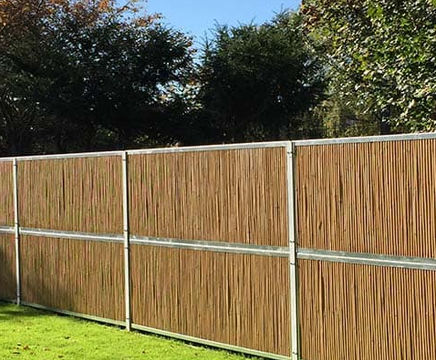

The BambooWall® noise barrier combines good acoustic properties with a natural look.

It has a steel frame and the outer side is finished with durable bamboo canes.

Key features

  • Durable and environmentally-friendly
  • Minimum required construction space: approx. 15-20cm
  • Delivered fully custom-made (width and/or height)
  • Easy to assemble (up to 3m high)
  • Certification: CE
  • Guarantee: 10 years

Technical details

  • Maximum construction height: 3m (higher is possible with a different foundation method)
  • Sound insulation EN1793-2: Rw=25dB (a)
  • Optional: on one side sound absorption EN1793-1: Dla = 6dB (a)- variant SA-80
  • Panel weight: 20-22kg/m2
  • Maximum panel width: 250cm (with H=120cm)
  • Maximum panel height: 120cm (with W=250cm)
  • Panel thickness: 5-9cm
  • Foundation: IPE 80-120 poles
  • Material: version with bamboo canes on both sides
  • Steel frame version: galvanised or powder coated (surcharge)

Variants: DR-50 and SA-80 (see brochure for more information)


The BambooWall® noise barrier combines good acoustic properties with a natural look.

It has a steel frame and the outer side is finished with durable bamboo canes.

Key features

  • Durable and environmentally-friendly
  • Minimum required construction space: approx. 15-20cm
  • Delivered fully custom-made (width and/or height)
  • Easy to assemble (up to 3m high)
  • Certification: CE
  • Guarantee: 10 years

Technical details

  • Maximum construction height: 3m (higher is possible with a different foundation method)
  • Sound insulation EN1793-2: Rw=25dB (a)
  • Optional: on one side sound absorption EN1793-1: Dla = 6dB (a)- variant SA-80
  • Panel weight: 20-22kg/m2
  • Maximum panel width: 250cm (with H=120cm)
  • Maximum panel height: 120cm (with W=250cm)
  • Panel thickness: 5-9cm
  • Foundation: IPE 80-120 poles
  • Material: version with bamboo canes on both sides
  • Steel frame version: galvanised or powder coated (surcharge)

Variants: DR-50 and SA-80 (see brochure for more information)
