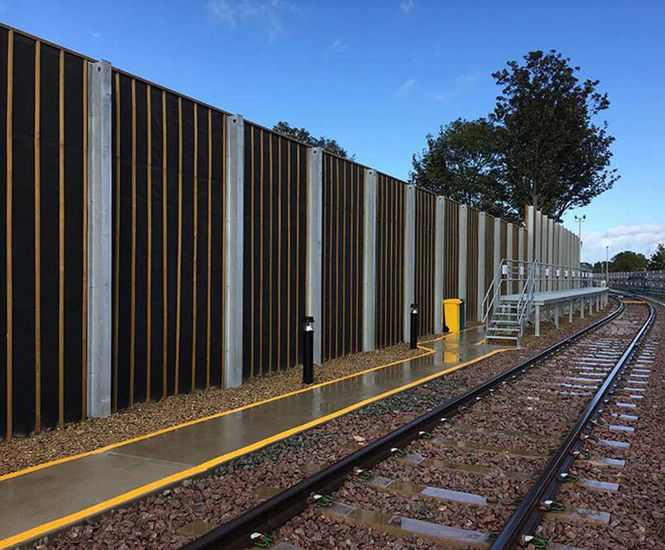

Jakoustic® Absorptive - acoustic fencing

Jakoustic® Absorptive acoustic fencing takes the proven Jakoustic® Reflective design but adds a Rockwool fibre absorptive layer on one side of the panel to keep noise within a contained space.

Ideal for applications where a significant reduction in noise penetration is required, typically used to surround continuous power supply generators, waste compactors and goods loading areas.

Key Features

• Timber construction with planed boards visible on one face

• Unique tuning fork design posts

• Special fixings clamp the acoustic boards between posts

• Can accommodate changes in level or profile

• With timber capping and counter rail

• Jakoustic® fencing with an additional absorptive layer covered with a protective membrane

• Matching pedestrian, swing and tracked sliding gates

• Up to 32dB reduction in noise*

• Virtually any height to suit application

• High privacy barrier

Certified laboratory results

• Rating according to BS EN 1793-2:1998

• B3 category

• Laboratory sound reduction of 32dB

• Superficial mass of 33kg/m2

Matching swing and sliding gates can also be manufactured.

All Jakoustic^® fencing comes with Jacksons' 25-year Jakcure guarantee and is ISO accredited.

Applications

• Residential properties

• Commercial properties

• Railways

• Sports venues

• Industrial

Gates

To really benefit from a noise reducing solution, any gates that are required should match the specification of the acoustic barrier. We manufacture swing and sliding gates with manual and automated operating options to match this product.

Jakoustic® Absorptive Specification

Heights from 1.8m-3.0m available as standard. Heights up to 2.0m supplied with timber tuning fork posts. Heights of 2.1m-3.0m include timber tuning fork posts and galvanised steel spur post reinforcements, powder coated black as standard.

For heights over 3m, see Jakoustic® Commercial and Highway.
