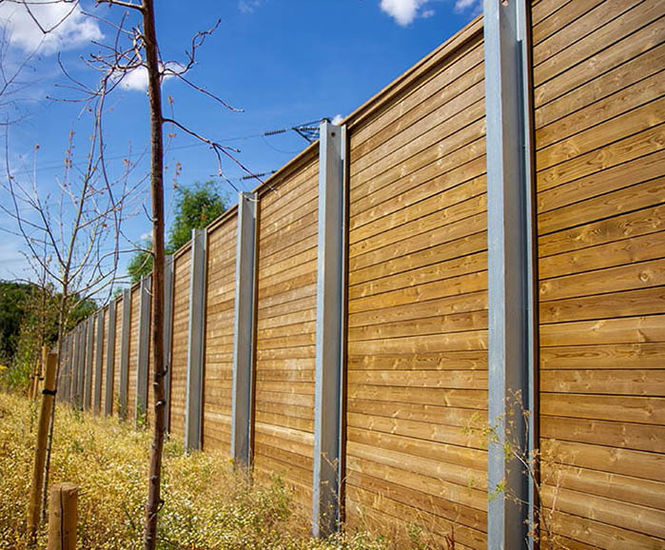

Jacksons Jakoustic® system is designed for commercial and highway applications. Providing high level of noise protection (Up to 32dB**) and available in both reflective and absorptive variants.

Suitable for highways, commercial, industrial and railways. Also suited for application in exposed locations subject to high wind loading.

The system can also be offered with capping and counter rails to further enhance its appearance.

Jakoustic® ‘V’ boards are affixed to galvanised steel I-beam posts for additional strength and rigidity, meeting BS EN 1794-1 and 2 standards.

Jacksons Fencing is the first UK manufacturer of timber acoustic barrier compliant with the requirements of BS EN 14388:2005 relating to traffic noise reducing devices.

Jakoustic® Commercial and Highway supplied and installed in compliance with Highways Sector Scheme 2C for supply, installation and repair of environmental barriers for infrastructure works and Scheme 4 for preservative treatment of timber.

Key Features

  • Up to 32dB** noise reduction

  • Type tested by BSI to BS EN 14388-2005

  • Galvanised steel I-beam posts

  • Complies with Highways Sector Scheme 2C for the supply, installation and repair of environmental barriers for infrastructure works and Scheme 4 for preservative treatment of timber.

  • 34mm Timber interlocking “V” boards

  • Can accommodate changes in level or profile

  • Optional timber capping, counter rails and post cladding available

  • Anti-climb and scale design

  • Matching pedestrian, swing and tracked sliding gates

  • High privacy barrier

Jakoustic Commercial and Highway Specification

Jakoustic® Commercial and Highway acoustic barriers are available in heights up to 12m and are constructed on steel I beam posts.

Acoustic barriers can be reflective or absorptive to suit the application.

Galvanised steel I-beams have nailing battens to be bolted to the front of the posts.

4.8m long interlocking ‘V’ boards are then nailed and also fixed with heavy duty screws through the timber boards into the nailing battens.

Cover boards are required on every steel posted installation.

Certification

  • BS EN 14388:2005

  • BS EN 1793-2 (Category B3)

  • BS EN 1794-1 (Annex A, B, C, E)

  • Design in accordance with BS EN 1794-2 (Annex B, C, D, F)

  • National Highway Sector Scheme 4

Matching swing and sliding gates can also be manufactured.

All Jakoustic® fencing comes with Jacksons' 25-year Jakcure guarantee and is ISO accredited.

Applications

  • Highways

  • Commercial properties

  • Construction sites

  • Industrial

  • Railways

  • Residential

  • Sports venues

  • Sites subject to high wind loading

  • Where a tall barrier height is required (over 3m)

  • Where a barrier with good security performance is required
