Product name Transparent Noise Barrier
Suitability Residential property
Transport network
Finish material Acrylic / perspex
Absorbent / reflective Sound reflective
Dimensions (w x h) 3960 x 2000

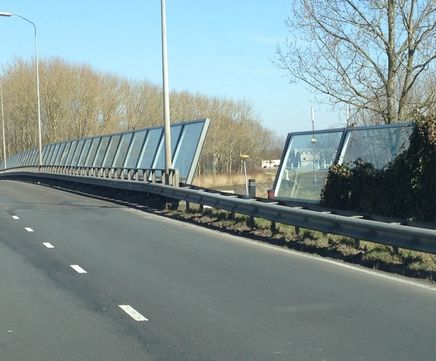

The transparent noise barrier provides excellent sound insulation while allowing light to penetrate.

PMMA sheets (plexiglass) are incorporated within a steel or aluminium frame.

Can be combined with other types of noise barriers to create a bespoke solution.

Key features

  • Allows light to penetrate
  • Effective and versatile
  • High sound insulation
  • Available in a range of heights and widths
  • Vandal-proof due to high breaking strength
  • Relatively short construction time
  • Certification: CE in accordance with EN14388: 2005 and GCW2012
  • Version with aluminium powder-coated frame in RAL colour of choice

Technical properties

  • Sound insulation: BS-EN-ISO-717-1 Rw=32dB, Dlr=30dB (a) EN1793-2 Dlr >25dB (a)
  • Maximum construction height: 10m (through stacked panels)
  • Panel weight: 20-24kg/m2
  • Standard panel width: 3960mm
  • Maximum panel height: 2000mm (with W=3960mm)
  • Panel thickness: 9cm
  • Foundation: vibratory driven foundation pile, onto which a lintel is mounted
  • Material: 15mm plastic PMMA sheet (plexiglass)


The transparent noise barrier provides excellent sound insulation while allowing light to penetrate.

PMMA sheets (plexiglass) are incorporated within a steel or aluminium frame.

Can be combined with other types of noise barriers to create a bespoke solution.

Key features

  • Allows light to penetrate
  • Effective and versatile
  • High sound insulation
  • Available in a range of heights and widths
  • Vandal-proof due to high breaking strength
  • Relatively short construction time
  • Certification: CE in accordance with EN14388: 2005 and GCW2012
  • Version with aluminium powder-coated frame in RAL colour of choice

Technical properties

  • Sound insulation: BS-EN-ISO-717-1 Rw=32dB, Dlr=30dB (a) EN1793-2 Dlr >25dB (a)
  • Maximum construction height: 10m (through stacked panels)
  • Panel weight: 20-24kg/m2
  • Standard panel width: 3960mm
  • Maximum panel height: 2000mm (with W=3960mm)
  • Panel thickness: 9cm
  • Foundation: vibratory driven foundation pile, onto which a lintel is mounted
  • Material: 15mm plastic PMMA sheet (plexiglass)
