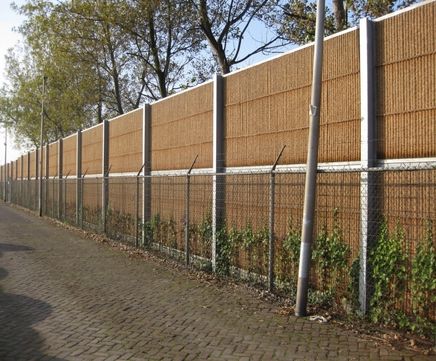

Product name Kokowall® HA-Minwol acoustic barrier
Absorbent / reflective Sound absorbent
Dimensions (w x h) 3960 x 2000




The Kokowall® HA-Minwol acoustic barrier is designed for industrial estates, locations directly alongside roads, around machines and other situations where plant growth is either not possible or desirable on both sides.

One side has been finished with durable coconut fibres and the other side finished with a layer of mineral wool with a plastic and galvanised mesh.

Key features

  • Effective, highly absorbent, natural and attractive
  • High sound insulation and sound absorption
  • Available in any lower height and smaller widths
  • Climbing plants can grow on one side
  • Cost-effective
  • Short construction time
  • Certification: CE in accordance with EN14388: 2005 and GCW2012
  • Certificate: European patent

Technical properties

  • Sound absorption EN1793-1: Dla = 11dB (a) cat. A3
  • Sound insulation EN1793-2: Rw=30dB (a) Dlr=27dB (a) cat. B3
  • Maximum construction height: 10m (through stacked panels)
  • Panel weight: 22-28kg/m2
  • Standard panel width: 3960mm (max 4960mm)
  • Maximum panel height: 2000mm (with W=3960mm)
  • Panel thickness: 9cm
  • Foundation: vibratory driven foundation pile, onto which a lintel is mounted
  • Material: one side coconut tubes and the other side a layer of mineral wool
  • Steel frame and posts version: galvanised or powder coated (surcharge)


The Kokowall® HA-Minwol acoustic barrier is designed for industrial estates, locations directly alongside roads, around machines and other situations where plant growth is either not possible or desirable on both sides.

One side has been finished with durable coconut fibres and the other side finished with a layer of mineral wool with a plastic and galvanised mesh.

Key features

  • Effective, highly absorbent, natural and attractive
  • High sound insulation and sound absorption
  • Available in any lower height and smaller widths
  • Climbing plants can grow on one side
  • Cost-effective
  • Short construction time
  • Certification: CE in accordance with EN14388: 2005 and GCW2012
  • Certificate: European patent

Technical properties

  • Sound absorption EN1793-1: Dla = 11dB (a) cat. A3
  • Sound insulation EN1793-2: Rw=30dB (a) Dlr=27dB (a) cat. B3
  • Maximum construction height: 10m (through stacked panels)
  • Panel weight: 22-28kg/m2
  • Standard panel width: 3960mm (max 4960mm)
  • Maximum panel height: 2000mm (with W=3960mm)
  • Panel thickness: 9cm
  • Foundation: vibratory driven foundation pile, onto which a lintel is mounted
  • Material: one side coconut tubes and the other side a layer of mineral wool
  • Steel frame and posts version: galvanised or powder coated (surcharge)
