Commercial channel drainage

RECYFIX PRO corrosion-free channel drainage systems are suitable for commercial and public areas. Manufactured from sustainable and fibre-reinforced polypropylene (PP) for extra strength and stability, the channels have excellent durability and resistance to environmental influences. With a range of grating options, the systems are rated up to D 400

HD4000 is a 400mm polymer concrete drainage channel has a nominal width of 400mm for load class applications up to F900. The HD4000 has an integral cast iron edge rail for strength under extreme dynamic loading. The lightweight construction of polymer concrete reduces installation time and manpower required on site: channel sections for a linear

HD3070 is a 300mm polymer concrete drainage channel has a nominal width of 300mm for load class applications up to F900. The HD3070 has an integral cast iron edge rail for strength under extreme dynamic loading. The lightweight construction of polymer concrete reduces installation time and manpower required on site: channel sections for a linear

ACO CVLR TrackDrain is a stainless steel drainage channel designed for surface and under-rail water management on 41GPU Very Light Rail tracks. Made from 10mm stainless steel, it includes a central 110mm outlet pipe and does not require mechanical fasteners or rail drilling, supporting faster installation and easy maintenance

ALT GRP Plus is a lightweight, stable, high-tech channel drainage system. It has a very high resistance to breakage and load-bearing capabilities, suitable for a wide range of applications from domestic, to commercial, up to heavy industrial use. Available with a range of grating options, including slotted and mesh gratings in galvanised steel and

With a slotted inlet of 10mm, the paverslot channel offers neat and discreet surface drainage for design-sensitive applications. The system harmoniously blends into the surface appearance with only unobtrusive narrow lines visible. The channel body is manufactured from 100% recycled composite and fitted with a 105mm asymmetrical slot grating

Trapezoidal profile. High capacity of 184 l/m. Channel width 381mm. Overall dimensions 1500 (l) x 500 (w) x 740mm (h). Choice of 9 lids for C250 and D400 loadings. Suitable for large car parks and other hardstandings, including motorways, airports, supermarkets, leisure parks

RECYFIX NC is a high-performance reinforced polypropylene channel drainage system. It consists of a durable and corrosion-resistant channel body made of fibre-reinforced polypropylene (PP) with a multi-point locked ductile iron grating. The system can withstand loads up to class E 600 and is ideal for demanding applications subject to heavy

The ACO CivicDrain lightweight channel drainage system is designed for use in applications with light to medium duty traffic such as pedestrian areas and private car parks. CivicDrain is manufactured from ACO's high strength polymer concrete, in 1m lengths with a 100mm wide bore. It is available in three channel depths, which makes it suitable for

ACO MultiDrain® PPD is a high strength polypropylene channel drainage system designed for efficient surface water removal in commercial, landscaping, residential, and parking applications. Made in 100mm, 150mm, and 200mm widths: high strength polypropylene channel drainage system for surface water management; hexagonal channel structure increases

FASERFIX SUPER drainage channels are manufactured from fibre-reinforced concrete and provide maximum stability and superior resistance against extreme loads and dynamic forces. The systems are rated up to load class F 900 making them ideal for demanding environments such as industrial units, service yards, airports and container terminals. The

FASERFIX KS drainage channels are manufactured from fibre-reinforced concrete and provide superior strength and resistance for public and commercial areas. The systems have a loading capacity from A 15 up to F 900 according to EN 1433. Extra thick sidewalls offer maximum lateral stability and additional security for areas subject to heavy loads

RECYFIX MONOTEC ULTRA is a fully integrated monolithic drainage channel made from polypropylene with ductile iron grating, designed for heavy-duty applications. Lateral wings allow optimised connection to concrete surfaces. Resistant to frost, road salt, UV radiation, corrosion, and chemicals. Low maintenance with easy system flushing through an

Althon CH 250 precast GRC drainage channels. Trapezoidal profile. High capacity of 87 l/m. Channel width 254mm. Overall dimensions L2000mm x W380mm x D515mm. Choice of 9 lids for C250 and D400 loadings. Suitable for large car parks and other hardstandings, including motorways and airports

Althon CH 525 precast GRC drainage channels. Trapezoidal profile. High capacity of 325 l/m. Channel width 533mm. Overall dimensions L1200mm x W725mm x D945mm. Choice of 9 lids for C250 and D400 loadings. Suitable for large car parks and other hardstandings, including motorways and airports

ACO HexDrain Pro is a polypropylene channel drainage system for light to medium duty traffic, suitable for vehicle loads up to Class C 250. Supplied with a black composite HeelGuard grating, it is designed for pedestrian safety and quick installation: polypropylene channel drain system for vehicle and pedestrian areas; heelGuard grating with 8mm

HD3000 is a 300mm polymer concrete drainage channel has a nominal width of 300mm for load class applications up to F900. The HD3000 has an integral cast iron edge rail for strength under extreme dynamic loading. The lightweight construction of polymer concrete reduces installation time and manpower required on site: channel sections for a linear

Althon heavy-duty traffic drains are eco-friendly F900 load class drainage channel systems. They are significantly lighter than comparable concrete channels, making them considerably easier to install. It is a monolithic channel so there is no separate grating making it ideal for heavy traffic loadings: resistant to aggressive abrasion, premature

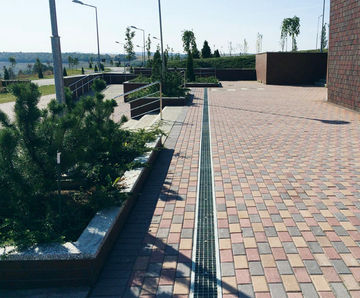

RECYFIX STANDARD channel drainage is suitable for pedestrian areas and light commercial traffic. The durable and corrosion-resistant channels are easy to transport and simple to install. With a load capacity of up to C 250, the channels are particularly suitable for public squares, gardens and parks. Available in nominal sizes from 100 to 300mm

ACO Freestyle is a customer-led grating design solution giving clients the ability to create bespoke drainage grating designs. Designers now have the freedom to create their own drainage designs that integrate into the architecture and materials of the environment. The product is manufactured from Ductile iron, and is compatible with

ACO M100D gratings are designed for use with ACO MultiDrain™ MD channels with UltraSTEEL™ galvanised edge rails or stainless steel edge rails: cast iron, stainless steel and plastic slotted gratings; heelguard options; solid covers; brickslot gratings. ACO Drainlock™, a bar-less locking device that reduces the risk of blockages and improves

DRAINFIX CLEAN is a filter substrate channel for effective treatment of polluted surface water. It has the unique ability to collect, filtrate and drain surface water before it is discharged into sewer networks or natural watercourses. The system consists of a CARBOTEC 60 filter substrate which efficiently treats pollutants found in surface water

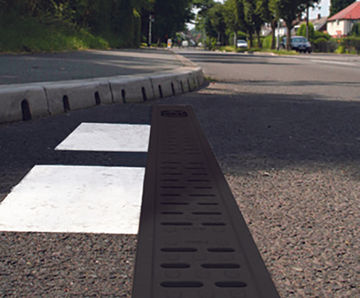

ACO RoadDrain® is a one-piece channel drainage system made from high-strength polymer concrete for medium- to heavy-duty highway, distribution yard and airfield drainage. Monolithic design integrates channel and grating, reducing risk of loss or vandalism. Channel widths: 100 and 200mm with internal depths up to 470mm

ACO Qmax® is a carbon-smart high-capacity slot drainage system made from lightweight materials for surface water management across small to large catchment areas. Certified carbon neutral from cradle to gate, it is suitable for load classes A 15 to F 900 and integrates into sustainable drainage systems (SuDS
