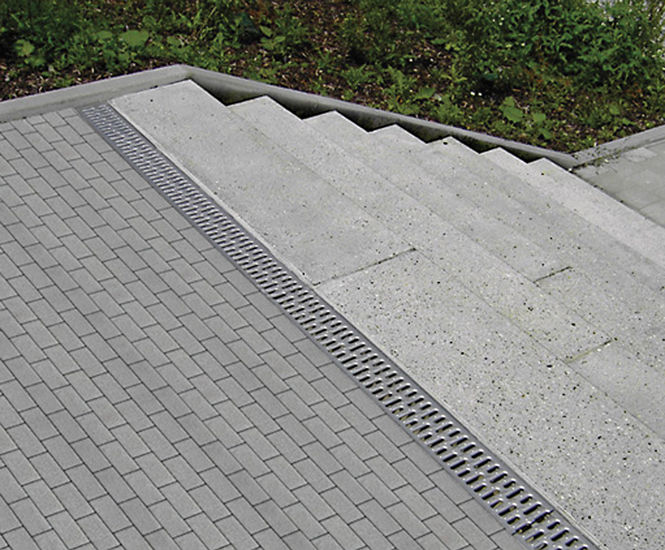

ACO MultiDrain® PPD is a high strength polypropylene channel drainage system designed for efficient surface water removal in commercial, landscaping, residential, and parking applications. Made in 100mm, 150mm, and 200mm widths.

  • High strength polypropylene channel drainage system for surface water management

  • Hexagonal channel structure increases strength while reducing weight

  • Choice of widths and depths supports varied drainage designs

  • Galvanised steel edge rail protects against traffic damage

  • Channels clip together for quick installation

  • CE and UKCA marked to BS EN 1433:2002 Load Class D 400

Applications

  • Threshold drainage

  • Public landscaping

  • Car parking

  • HGV parking

  • Petrol station forecourts

  • Light industrial areas

  • SuDS (Sustainable Drainage Systems)

Dimensions

Widths: 100mm, 150mm, 200mm

Performance

Load rating: BS EN 1433:2002 Load Class A 15 to D 400

Materials

Channel made from polypropylene

Edge rail made from galvanised steel

Options and variations

Shallow and constant depth channels

Choice of gratings and solid covers

Installation

Channels clip together for fast assembly

Sealant groove for watertight installation

Vertical outlet for connection to sump units or pipework

Accreditations

UKCA and CE marked to BS EN 1433:2002
