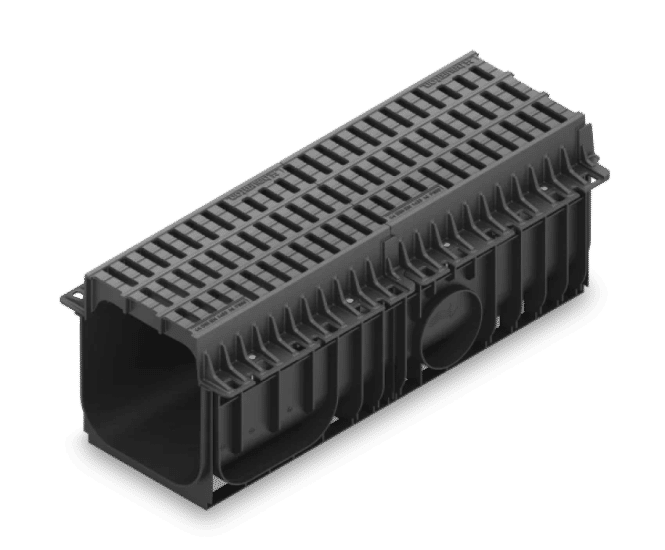

RECYFIX MONOTEC ULTRA is a fully integrated monolithic drainage channel made from polypropylene with ductile iron grating, designed for heavy-duty applications. Lateral wings allow optimised connection to concrete surfaces. Resistant to frost, road salt, UV radiation, corrosion, and chemicals. Low maintenance with easy system flushing through an access box.

  • Monolithic drainage channel for high-traffic and heavy-duty areas

  • Integrated ductile iron grating for lasting stability

  • Large inlet cross-section for effective water intake

  • Break-proof polypropylene channel adapts easily on-site

  • Lateral wings improve connection to concrete surfaces

  • Durable against frost, road salt, UV, corrosion, and chemicals

  • Low maintenance with straightforward cleaning access

Applications

  • Roads, logistics centres, industrial yards, airports, ports, and other areas with high wheel loads and dynamic traffic

Dimensions

RECYFIX MONOTEC ULTRA 200 Type 010

Length 100mm

Width 340mm

Height 281mm

Weight 32.65kg

RECYFIX MONOTEC ULTRA 200 Type 020

Length 1000mm

Width 340mm

Height 331mm

Weight 33.04kg

RECYFIX MONOTEC ULTRA 300 Type 01

Length 1000mm

Width 440mm

Height 386mm

Weight 56.64kg

Materials

Polypropylene (PP) channel

Ductile iron grating

Performance

Resistant to frost, road salt, UV radiation, corrosion, and chemicals

Maintenance

Easy flushing and cleaning through access box

Product accreditations

Conforms to EN 1433 load classes A15 to F900
