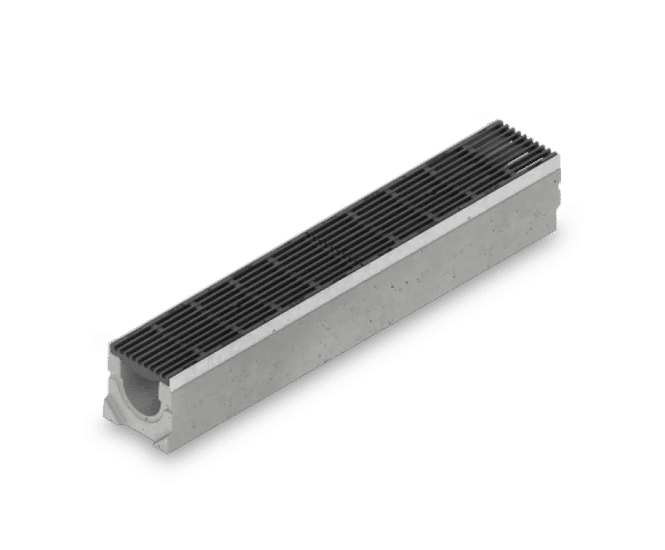

FASERFIX KS drainage channels are manufactured from fibre-reinforced concrete and provide superior strength and resistance for public and commercial areas.

The systems have a loading capacity from A 15 up to F 900 according to EN 1433. Extra thick sidewalls offer maximum lateral stability and additional security for areas subject to heavy loads.

FASERFIX KS systems are available in a variety of nominal widths of 100-300mm and are compatible with numerous gratings for total design flexibility.

Benefits

  • Channels made of fibre-reinforced concrete with sustainable basalt fibres.

  • 20 x 20mm angle housing made of galvanised or stainless steel.

  • Selection of gratings including the award-winning FIBRETEC composite grating and ductile iron METROPOLIS design.

  • 90% time-saving due to SIDE-LOCK feature, boltless locking system (compared to conventional fixing).

  • SIDE-LOCK fixing with central bolt and bar fixing for added safety, stability and security.

  • Fire resistance class A1 (not flammable) according to DIN 4102.

  • Additional protection against longitudinal movements.

  • Corrosion-resistant galvanised or stainless steel angle housing.

SIDE-LOCK: time-saving revolutionary boltless locking system

SIDE-LOCK is a unique and straightforward way of locking gratings into position without bolts or special tools. The grating is aligned and positioned correctly on the channel and securely locked into place with foot pressure. It will not dislodge when exposed to heavy traffic conditions, longitudinal or transverse movements.

SIDE-LOCK feature can save up to 90% on installation time and provides ease of maintenance. Simple access to the channel is achieved by levering open the grating with a screwdriver near the locking system.
