Retaining structures

Nicospan is a prefabricated, double-weave revetment fabric made from strong, UV-stabilised monofilament yarns, heat-sealed to form a series of open pockets so that 75 or 100mmø timber posts can be installed. Nicospan is designed specifically for vertical bank protection at the water’s edge and is ideal where access to the watercourse is limited

The Polycrib retaining wall system is made in Britain from UK-generated plastic waste and has the environmental benefit of diverting tonnes of waste from going to landfill. 120-year design life. BBA HAPAS certified; most retention applications and heights in different ground conditions; aesthetically pleasing system that can be landscaped

StoneFence™ is a decorative gabion walling system. Twin welded wire mesh panels create a divide that allows you to display the beauty of local stone, broken brick or other recycled products. StoneFence™ is strong, vandal-resistant and noise-absorbing, while also providing a habit for insects and wildlife. It is popular choice for playgrounds

Green Terramesh® is an environmentally-friendly, modular system used to form vegetated (green) faced soil-reinforced slopes (RSS) and embankments. It consists of pre-fabricated units of double-twisted wire mesh lined with an erosion control blanket and stiffened with a welded mesh panel. Pre-formed steel braces are supplied to be connected at the

The Rootlok Vegetated Wall System offers engineers, architects, contractors and others an engineered solution for retaining walls that increase biodiversity in construction projects. Rootlok can be used to build standard gravity walls in small applications up to 2.1m high, as well as reinforced structures 10m or more in height

Phi Group designs, supplies, and installs services modular block-faced reinforced soil systems for highways, rail, and commercial projects. Phi Group has designed, supplied and constructed over 50,000m2 of wall since 1994. This has included some of the most prestigious projects in the country

GeoGrow's Rootlok vegetated wall system is an engineered green wall and slope solution made in the UK, designed for permanent erosion control and supporting vegetation growth. It uses interlocking HDPE plates and high-organic-content bags to create a stable, free-draining structure for retaining walls and slopes

Woodscape's retaining wall system, manufactured in naturally very durable hardwood, provides a quick and effective way of building retaining walls up to 1800mm high. In some circumstances, higher walls can be constructed. The system uses 140x65mm hardwood timber sections and 65x65mm corner components, providing great strength with an extremely

Geoweb® is a retaining wall system built using open-celled horizontal terraces. The cells are filled with local materials and planted to create a green wall with a vegetated front face. The vegetated system allows rain water to collect through the cell wall, maximising stormwater collection and minimising run-off. The soil-filled front cells allow

Rocket Walls™ are high-quality, freestanding, precast concrete units. They are designed to be sited on an existing concrete floor slab or foundation and, for improved site safety and maximum efficiency, are bolted down using fixing bolts to prevent movement. Their uniqueness makes them suitable for a variety of uses: simply installed and easily

Wallcast is a precast integrated wall panel system designed to reduce installation time and manual labour requirements. Intended for boundary and perimeter applications, it combines wall panels and column sections into a single precast unit. A rigid footing system enables safer installation, and both sides of the wall can be textured

Betoplus is a dry-build interlocking concrete block walling system designed for low-height, plantable walls with a curved face profile. Suitable for earth retention, noise reduction and landscaping, this patented system comes in a range of colours and supports curved or straight layouts

T Walls are precast concrete units designed for retaining wall applications. Each unit has a standard width of 1m and heights ranging from 2-4m. They can retain material on both sides and support loads up to 18kN/m³. T Walls can be installed on a concrete foundation using mortar bedding and mechanical anchoring with resin and steel bars

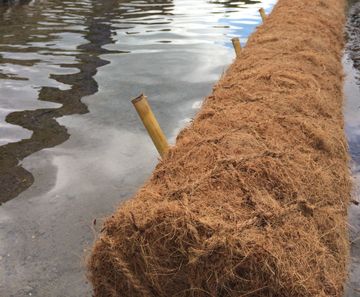

Greenfix coir rolls are unplanted, natural fibre rolls made from coir, designed for immediate soft edge erosion control along river banks, streams, canals, lake edges and ponds. Rolls can be planted with native species to support wildlife habitats and improve biodiversity. Supplied in 200, 300 or 400mm diameters and 3-6m lengths

Bi-axial welded mesh gabions are manufactured from a square mesh, normally of opening size 75.0mm × 75.0mm where the longitudinal wires are welded to the cross wires at their intersection points. This type of fabric manufacture produces a dimensionally stable mesh. The mesh is produced in standard sheets which are then cut into the required panel

The Andacrib modular pre-cast concrete crib retaining wall system is designed to cater for the most onerous loading conditions demanded of structures in highway, industrial and commercial sectors. The system's unique design, incorporating generous header to header bearing surfaces, ensures that all primary loads are remote from the exposed face

Textomur consists of horizontal geogrids or geotextiles typically at 600mm vertical centres within compacted cohesive or granular fill material. The facing to the slopes is formed using a steel mesh ‘formwork' backed by a geosynthetic facing fabric which retains a layer of topsoil immediately behind the face. The finished slope can be hydroseeded

Modular reinforced soil system used to form a gabion-faced MSE wall. The facing section of the unit is formed by connecting a back panel and diaphragms to the main fascia unit, creating the rectangular-shaped box used for stone confinement. The geogrid reinforcement, fascia and lid are all one continuous panel of mesh. Units are supplied in

Mineral Terramesh® is a unique and simple-to-install soil reinforcement system with a sloping rockface finish. It is suitable for where a modern, clean-faced aesthetic is preferred. Mineral Terramesh® can be used either alone or in conjunction with the company's ParaGrid® or ParaDrain® geogrids depending on the height of the reinforced soil

Betoflor is a dry build interlocking concrete block walling system designed for low-height earth retaining walls, planters, noise barriers, and traffic calming, with a plantable structure and a patented design: dry build interlocking concrete block walling system for low-height applications; plantable structure supports vegetation integration

Flex MSE Vegetated Retaining Wall System is a modular wall solution made from geosynthetic bags that are filled and stacked using special plates to create stable, plantable retaining walls. Designed for soil retention and flood protection, this system supports vegetation growth and adapts to various site conditions: modular wall system using

SoluForm's topsoil-filled MSE bagwork consists of soil-filled geotextile bags held in place by spikes or pins. The bagwork is prefilled, arriving to site ready to place. The soil allows for the establishment and promotion of vegetation growth, both on and inside the bagwork. This not only greens up the bagwork to improve its appearance, it

Welded gabions are suitable for architectural applications, or low-height structures with minimal risk of differential settlement. Maccaferri's welded gabion units consist of panels of quality welded wire mesh, secured together to form a gabion unit, filled on-site with gabion stone to form the appropriate structure. When filled correctly with

Criblok solutions are gravity retaining wall systems made from interlocking modular components that form a grid structure, filled with graded stone for mass and stability. Available in timber or 100% recycled plastic, these systems are designed for geotechnical and erosion control applications, with options for natural or vegetated finishes and
