System type Timber / wood
Suitability Civil engineering
Landscaping
Maximum wall height (m) 1.8
Component dimensions (mm) 140x65mm sections; 65x65mm corner components

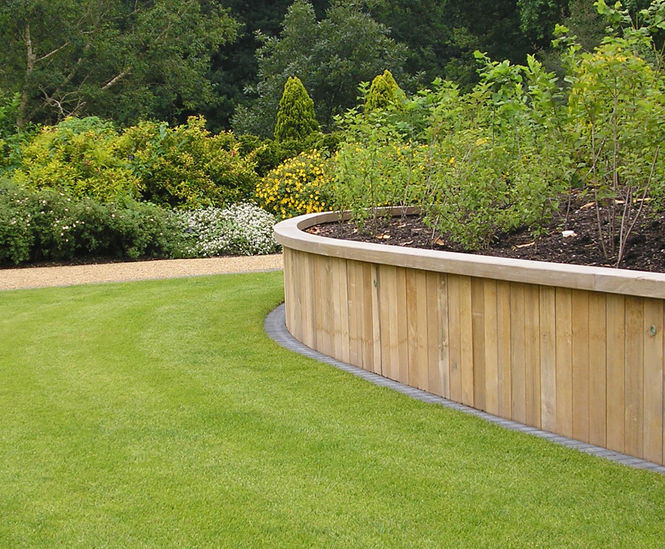

Woodscape's retaining wall system, manufactured in naturally very durable hardwood, provides a quick and effective way of building retaining walls up to 1800mm high. In some circumstances, higher walls can be constructed.

The system uses 140x65mm hardwood timber sections and 65x65mm corner components, providing great strength with an extremely long life expectancy.

Standard retaining wall components comprise the following profiles:

  • Straight component: seven components make approximately one linear metre. Also suitable for constructing radii of 3000mm or greater.
  • 90 degree corner component: 65x65mm corner section grooved on two adjacent faces. Special angle corner components are also available.
  • 1000mm radius component: 44 components make a full circle with a 2000mm outside diameter.
  • 500mm radius component: 22 components make a full circle with a 1000mm outside diameter.
  • End component: 140x65mm section grooved on one face only.

Components are available in the following standard lengths:

  • R600 (600mm)
  • R900 (900mm)
  • R1500 (1500mm)
  • R1800 (1800mm)
  • R2100 (2100mm)
  • R2400 (2400mm)

Other lengths are available upon request and special components can be manufactured to suit any radius or angle.

Options:

  • Straight and curved seat top copings.
  • Light units can also be incorporated into most components.
  • Independent Design Certification.


Woodscape's retaining wall system, manufactured in naturally very durable hardwood, provides a quick and effective way of building retaining walls up to 1800mm high. In some circumstances, higher walls can be constructed.

The system uses 140x65mm hardwood timber sections and 65x65mm corner components, providing great strength with an extremely long life expectancy.

Standard retaining wall components comprise the following profiles:

  • Straight component: seven components make approximately one linear metre. Also suitable for constructing radii of 3000mm or greater.
  • 90 degree corner component: 65x65mm corner section grooved on two adjacent faces. Special angle corner components are also available.
  • 1000mm radius component: 44 components make a full circle with a 2000mm outside diameter.
  • 500mm radius component: 22 components make a full circle with a 1000mm outside diameter.
  • End component: 140x65mm section grooved on one face only.

Components are available in the following standard lengths:

  • R600 (600mm)
  • R900 (900mm)
  • R1500 (1500mm)
  • R1800 (1800mm)
  • R2100 (2100mm)
  • R2400 (2400mm)

Other lengths are available upon request and special components can be manufactured to suit any radius or angle.

Options:

  • Straight and curved seat top copings.
  • Light units can also be incorporated into most components.
  • Independent Design Certification.
