Material Slate
Cross section Square
Dimensions (l x w x h) 800x800x350
Diameter (mm) 15

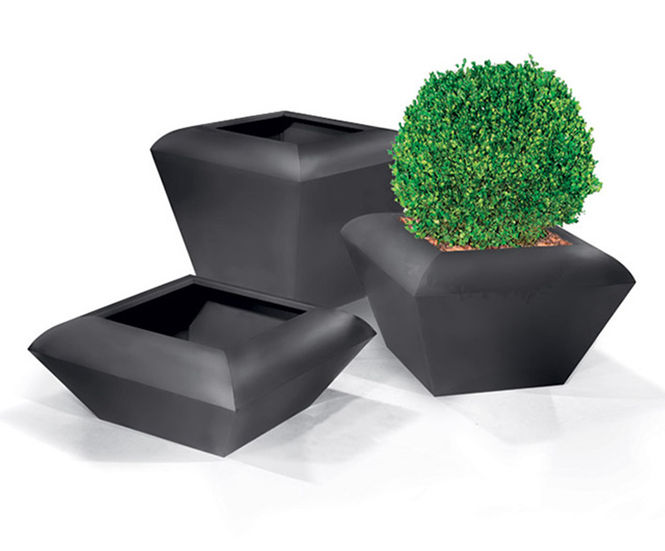

The ALAIN 800 H. 350 planter is made in steel 15/10 thickness. The structure is pyramid-shaped with a square base, and the band of the upper part is calendered with a radius of 160 mm. Inside the planter, on the main part of each side a support profile 15/10 thickness is welded. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes 15 mm diam. for the fixing to the ground through specific bolts (not provided).

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with AkzoNobel RAL colours at choice.


The ALAIN 800 H. 350 planter is made in steel 15/10 thickness. The structure is pyramid-shaped with a square base, and the band of the upper part is calendered with a radius of 160 mm. Inside the planter, on the main part of each side a support profile 15/10 thickness is welded. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes 15 mm diam. for the fixing to the ground through specific bolts (not provided).

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with AkzoNobel RAL colours at choice.


Interested in this product?
Call 0114 282 1283
OR



Downloads
  • Al Ain 2 (520) DWG drawing
    Al Ain 2 (520) DWG drawing
    92.12KB
    Download
  • Al Ain 2 Planter by LAB23 DWG (350) drawing
    Al Ain 2 Planter by LAB23 DWG (350) drawing
    96.62KB
    Download
  • Al Ain 2 Planter by LAB23 (720) drawing
    Al Ain 2 Planter by LAB23 (720) drawing
    83.84KB
    Download
  • Al Ain 2 Planter By LAB23 tech spec
    Al Ain 2 Planter By LAB23 tech spec
    3pp 507.38KB
    Download



Enquire
