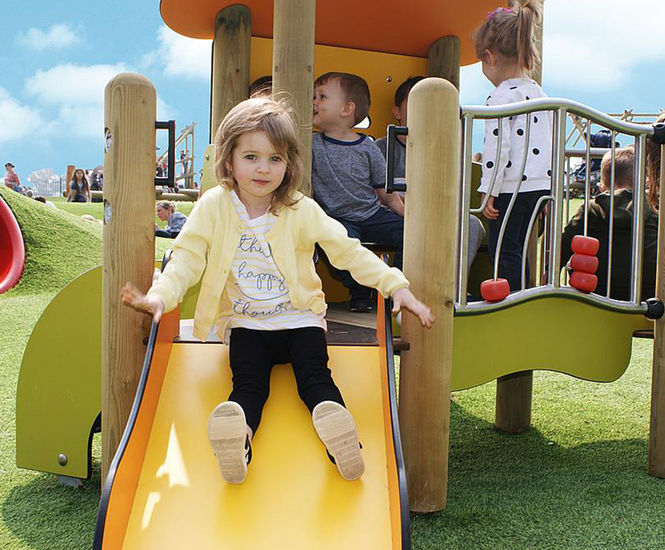

Play unit Cherry is a children’s outdoor play structure made from pressure-impregnated softwood and high-pressure laminate (HPL), with stainless steel and polyethylene elements. Designed for young children from 1 year, it includes a roof, bench, wall with window and shutters, platforms, ramp, stairs, and fence elements, all in a compact footprint.

  • Outdoor play structure for children aged 1 and above

  • Made from pressure-impregnated softwood, HPL, stainless steel, and polyethylene

  • Includes roof, bench, wall with window and shutters, platforms, ramp, stairs, and fence elements

  • Compact design with minimal space requirements

  • Freefall height of 40 cm for enhanced safety

  • Partially pre-assembled components for easier installation

  • Suitable for installation on lawn with specified foundation types

Technical specification

Material

softwood pressure-impregnated

Minimal space

5,46x4,85x2,20 m

Fall protection netto

7,5 m²

Freefall height

40 cm

Biggest part

132x88x1,5 cm

Heaviest part

23 kg

Foundation level

ET 400

Foundation

11x CF or 3x PFs + 8x PFr

Soil quality

at least lawn

Catalogue index

minimondo Play unit Cherry

Applications

  • Public playgrounds

  • Nurseries and preschools

  • School outdoor areas

  • Parks and recreational spaces

  • Residential communal gardens

Dimensions

Minimal space 5.46 x 4.85 x 2.20 m

Biggest part 132 x 88 x 1.5 cm

Heaviest part 23 kg

Impact protection area 7.5 m²

Freefall height 40 cm

Materials

Pressure-impregnated softwood

High-pressure laminate (HPL)

Stainless steel

Polyethylene

Galvanised steel

Installation

Requires two people, estimated assembly time 3 hours

Suitable for installation on lawn

Foundations: 11x CF or 3x PFs + 8x PFr

Sustainability

CO2 emissions 571.4 kg

36% renewable raw materials

15% recycled material
