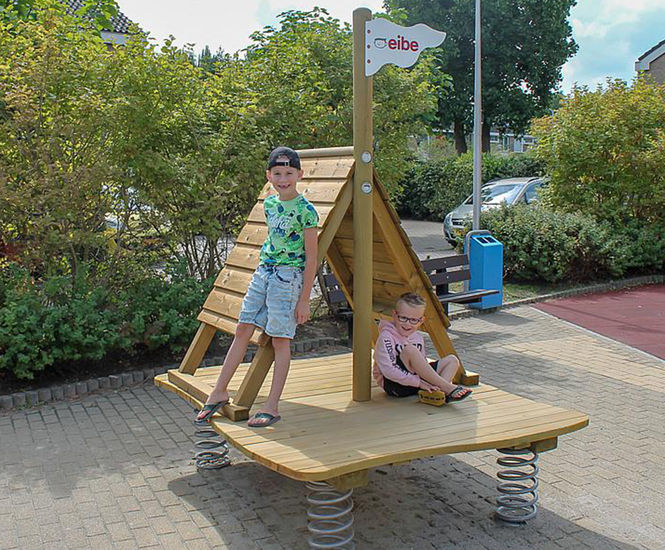

Multi-spring rocker Sand Raft is a themed playground unit designed for imaginative play, shaped like a raft and mounted on multiple springs for rocking movement. Made from pressure-impregnated softwood and larch, with a high-pressure laminate flag and spring steel components, it is suitable for outdoor installation on lawn or similar surfaces.

  • Playground rocker with raft design for group play

  • Made from pressure-impregnated softwood and larch for durability

  • Mounted on four powder-coated spring steel springs for movement

  • Includes roof, mast, and rounded-edge HPL flag for safety

  • Suitable for children from 3 years old

  • Tested to TÜV product safety standards

  • Requires minimal space and impact protection area

Applications

  • Public playgrounds

  • School outdoor play areas

  • Parks and recreation spaces

  • Nursery and early years settings

  • Themed play zones

Technical specification

Material

softwood pressure-impregnated

Minimal space

5,00x4,70x,2,52m

Fall protection netto

17,0 m²

Freefall height

52 cm

Biggest part

200x170x11 cm

Heaviest part

20 kg

Foundation level

ET 700

Foundation

4x 5632280 + 4x CF

Soil quality

at least lawn

Catalogue index

ecorino Themed play unit playo Sand raft

Dimensions

Minimum space 5.00 x 4.70 x 2.52 m

Freefall height 52 cm

Impact protection area 17.0 m²

Largest part 200 x 170 x 11 cm

Heaviest part 20 kg

Materials

Pressure-impregnated softwood

Larch

Spring steel (powder-coated, RAL 3000 red)

High-pressure laminate (HPL) flag

Galvanised steel fittings

Stainless steel screws

Installation

Requires four ground anchors or concrete foundations

Minimum ground condition: lawn

Assembly by two people in approximately two hours

Accreditations

TÜV product service certified

Sustainability

CO2 emissions: 809 kg

82% renewable raw materials

17% recycled material
