Product name Duo™
System type Concrete blocks
Suitability Bulk storage

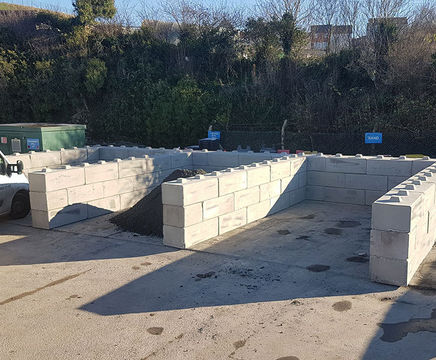

Elite manufactures Duo™ interlocking concrete ‘lego’ blocks with a clever design (which incorporates a cast-in lifting pin flush with the concrete surface) that allows the blocks to be easily dry-laid onto any firm surface, creating bay dimensions to suit almost any site. They can be easily relocated or reconfigured as business needs dictate.

The blocks also provide a simpler, more robust and cost-effective solution than conventional L- or A-shaped thin-walled panels.

Applications

  • Cofferdams
  • Bay walls
  • Silage clamps
  • Earth retention
  • Traffic calming
  • Security / property protection
  • Waste and recycling material segregation
  • Scrap and steel recycling
  • Security barriers

Sizes ( l x w x h)

Available in three sizes – one, two and three connector.

  • BL1 (F) 600 x 600 x 450; 375kg
  • BL1 600 x 600 x 450; 375kg
  • BL2 (F) 1200 x 600 x 450; 750kg
  • BL2 1200 x 600 x 450; 750kg
  • BL3 (F) 1800 x 600 x 450; 1125kg
  • BL3 1800 x 600 x 450; 1125kg

Installation

Speed of construction is a key feature. Two men can expect to install 228 blocks per day, which is over 123m2. The blocks interlock with each other using ‘lego’ type connectors and are dry-laid making them a reusable semi-permanent option. Capping pieces are also available to give an aesthetically-pleasing finish.

Delivery

A standard articulated lorry carries 38 of the 1200mm blocks although Elite can deliver any number, including single blocks.


Elite manufactures Duo™ interlocking concrete ‘lego’ blocks with a clever design (which incorporates a cast-in lifting pin flush with the concrete surface) that allows the blocks to be easily dry-laid onto any firm surface, creating bay dimensions to suit almost any site. They can be easily relocated or reconfigured as business needs dictate.

The blocks also provide a simpler, more robust and cost-effective solution than conventional L- or A-shaped thin-walled panels.

Applications

  • Cofferdams
  • Bay walls
  • Silage clamps
  • Earth retention
  • Traffic calming
  • Security / property protection
  • Waste and recycling material segregation
  • Scrap and steel recycling
  • Security barriers

Sizes ( l x w x h)

Available in three sizes – one, two and three connector.

  • BL1 (F) 600 x 600 x 450; 375kg
  • BL1 600 x 600 x 450; 375kg
  • BL2 (F) 1200 x 600 x 450; 750kg
  • BL2 1200 x 600 x 450; 750kg
  • BL3 (F) 1800 x 600 x 450; 1125kg
  • BL3 1800 x 600 x 450; 1125kg

Installation

Speed of construction is a key feature. Two men can expect to install 228 blocks per day, which is over 123m2. The blocks interlock with each other using ‘lego’ type connectors and are dry-laid making them a reusable semi-permanent option. Capping pieces are also available to give an aesthetically-pleasing finish.

Delivery

A standard articulated lorry carries 38 of the 1200mm blocks although Elite can deliver any number, including single blocks.





Downloads
  • Duo™ interlocking concrete blocks
    Duo™ interlocking concrete blocks
    2pp 965.8KB
    Download
  • Designing retaining walls using interlocking concrete blocks
    Designing retaining walls using interlocking concrete blocks
    19pp 1.18MB
    Download
