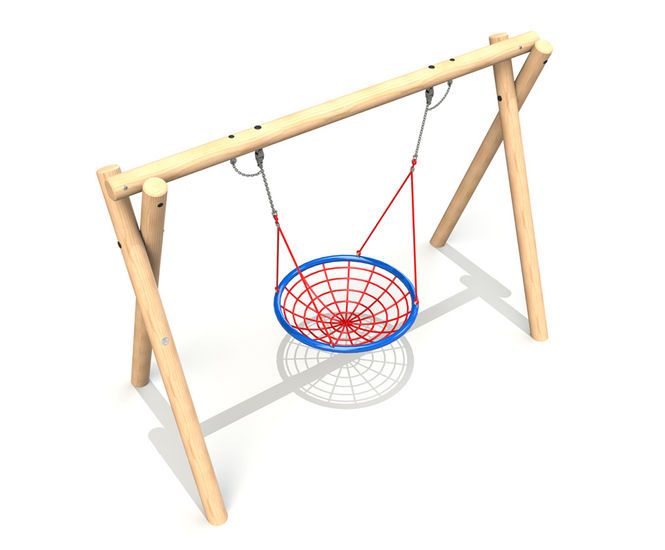

Timber-framed basket swing (2.4m)
Features: timber construction; 1 x group swing; safety chains. 3600 (l) x 1730 (w) x 2538mm (h). Free fall height: 1400mm. Safety surfacing area required: 21m2
Basket swings are designed to allow groups of children to swing together, encouraging socialisation in the playground.
Features
Timber construction
1 x group swing
Safety chains
Specifications
Length: 3600mm
Width: 1730mm
Height: 2538mm
Free fall height: 1400mm
Safety surfacing
Area required: 21m2 Area dimensions: 7 x 3m
Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 8m (from 7m) to allow an extra 500mm of surfacing at either end.
Additionally, for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.
