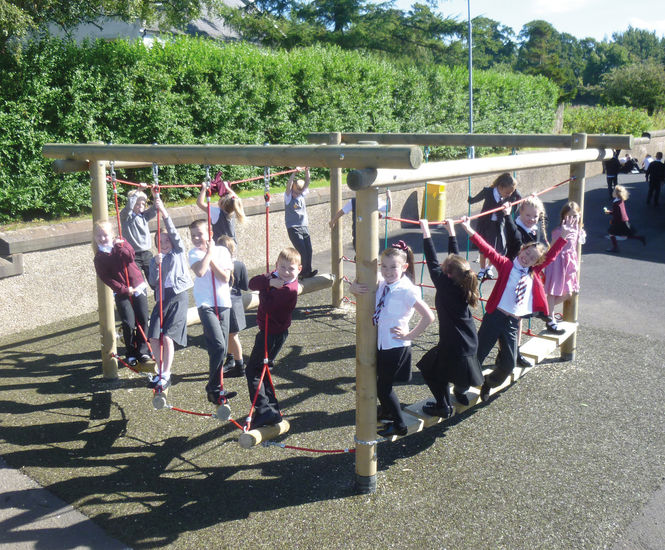

The Agility Cube is robust enough to withstand a lot of use in commercial applications and is particularly suited to hotel grounds and camp sites as it has many features in one confined area to entertain children of all ages and abilities.

It combines four different traversing agility trail items carefully linked together to form a square, which is particularly suitable for areas where space is limited. It also means that less safety surfacing is required as the products are not strung out in a line.

It can also provide a social space for gathering as the children chat and interact while being physically active.

Caledonia Play can advise on the best combination of products to suit the age group, size and ability of those who will be using it and will make sure that is offers enough of a challenge but is not so difficult that it stops children having a go.

Construction

  • Pressure-treated timber

  • 16mm diameter steel wire reinforced multi filament polypropylene ropes

  • Poles are quarter-sawn and sanded for a smooth finish

  • Timbers located in the ground are fitted with Postsaver sleeves to help prevent against rot

Configurations

CP-BOX TN HRT FTS HLS

Cross wires
Hanging rope traverse
Hanging log steps traverse
Traversing net

CP-BOX PW XW RL FTS

Parallel wires
Cross wires
Rolling log
Floating steps

Double Cube CP-BOX-2

Two cubes linked together
5x stepping log columns
Balance beam

Bespoke

Alternative elements include:

  • Floating steps

  • Monkey bar rings

  • Parallel wires

  • Rolling log

  • Hanging tyres

  • Weaving ropes

Specifications

Specifications will vary depending on which agility elements are selected, however typical climbing cube components have the following:

  • Quarter-sawn machine rounded poles pressure treated with non-arsenic preservative, impregnated with wax, sanded for a smooth finish and fitted with bitumen sleeves and secured into the ground with concrete footings

  • Vertical poles: 14cm diameter

  • Timber fixings are secured with high tensile bolts with a shear strength of 13.3 kilonewtons, pull out strength 5.45 kilonewtons

  • 16mm diameter steel wire reinforced multi-filament polypropylene rope

  • End fixings are typically M12 hot dip galvanised drop forged eyebolts

  • Tough nylon thimbles

  • Hydraulically-swaged aluminium ferrules

  • Dimensions: 3.0 (l) x 3.0 (w) x 2.2m (h)
