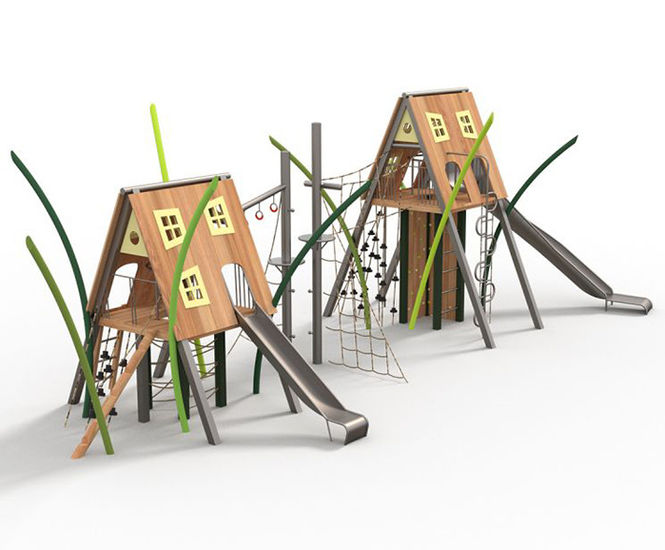

Play Houses Grass 3 is a large multiplay unit with a variety of climbing challenges, slides and platforms for social interaction. The package consists of:

  • playhouse with roof ridge

  • 4 support posts in GrasArt-design, inclined with bevel cut

  • 1 gabled roof made of robinia with 5 HPL windows and 2 HPL gable claddings, sealed with acrylic glass

  • 2 climbing walls, PH 250cm

  • element of wall bars, made of stainless steel

  • 1 Spiel-Bau slide, u-shaped, with 90° curve, PH 250cm, made of stainless steel

  • 1 climbing pole

  • 1 rope ladder with rungs, made of stainless steel

  • 1 zigzag climbing pole

  • climbing ropes with steps

  • rope bridge

  • posts with small round platforms and several climbing knobs, made of stainless steel

  • 1 rope ladder, made of Hercules rope

  • 1 sailing net, made of Hercules rope

  • small playhouse with roof ridge

  • 4 support posts in GrasArt-design, inclined with bevel cut

  • 1 gabled roof made of robinia with 5 HPL windows and 2 HPL gable claddings, sealed with acrylic glass

  • 1 rope ascent underneath the platform

  • 1 Spiel-Bau slide, box-shaped, PH 150cm

  • 1 chicken ladder with safety rope

  • climbing ropes

  • 1 ladder with stainless steel bars to the platform, PH 150cm

  • several balustrades and railings

Technical details

All support posts made of stainless steel tube ø101,6mm. Visible ends of the posts are welded conclusively to a stainless steel cap.

All stainless steel surfaces are radiated with glass marbles according to environmental protection rules.

Connection between platform/railing and support posts through stainless steel press-in threaded sleeves.

Platform fixed by use of concentrical incorporated stainless steel brackets.

All wooden parts made of Robinia planed and chamfered. All wooden parts are untreated.

Connections railing/support post through countersunk diagonal hole and stainless steel screws with special key head-theft protection. Connection point net/rope with support posts through specifically formed stainless steel fork and tensible stainless steel chain.

Nets made of Hercules rope. All connecting parts made of stainless steel or galvanised. Use of self-locking nuts only.

Drying cracks are normal in all native hardwoods, also after appropriate storage and professional treatment. Therefore drying cracks do not justify a warranty claim. (cf supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6)
