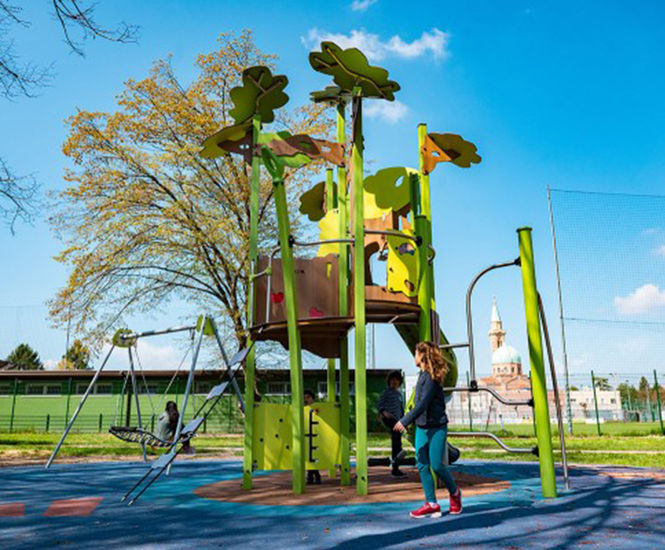

Ka'Yop Essential Unit - Playground equipment with slide, climbing and manipulative play, part of the Kanopé range by J56000®, designed for children aged 3 and up, supports up to 24 users and includes 29 play functions in a compact, weather-resistant structure.

  • Multi-activity play structure for children aged 3+ with slide, climbing, and manipulative elements

  • Accommodates up to 24 users at once

  • Includes 29 distinct play functions supporting physical, social, and sensory development

  • Made from painted galvanised steel, HPL panels, recycled polyethylene, aluminium, stainless steel, and rotomoulded polyethylene

  • Non-slip platforms and seats for safety

  • Free fall height of 2.37 m

  • Certified by an independent laboratory

Applications

  • Public playgrounds

  • School play areas

  • Parks and recreation spaces

  • Residential developments

  • Community centres

Dimensions

Length 6.85 m

Width 3.86 m

Height 5.20 m

Free fall height 2.37 m

Surface area 49.50 m²

Total weight 843.80 kg

Heaviest element 32.38 kg

Materials

Painted galvanised steel posts

HPL panels and platforms

Recycled polyethylene and aluminium slatted fences

Stainless steel tubes

Rotomoulded polyethylene slide

Methacrylate portholes

Non-slip rubber seats

Galvanised steel cable with polyester rope

Installation

Requires 3 installers

Installation time 18 hours

Concrete volume 1.17 m³

Accreditations

Certified by an independent laboratory

Sustainability

Slatted fences made from post-consumer recycled food and drink containers

Performance

Weather and vandal resistance

UV and temperature resistant

Rot-proof materials for outdoor use
