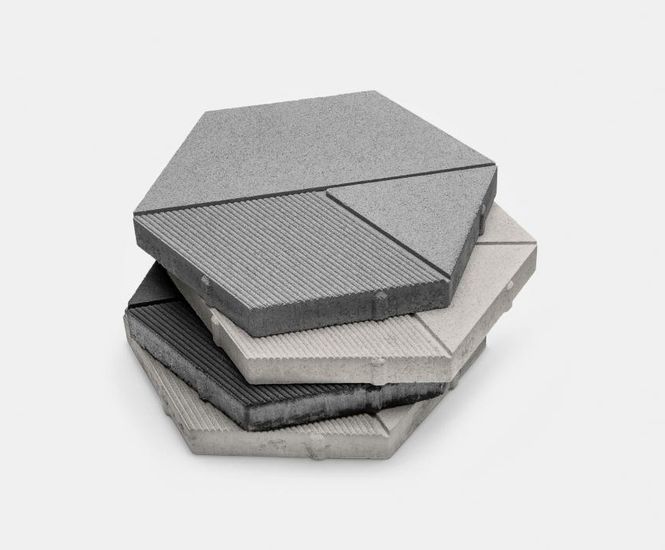

Dedale precast concrete paving slabs have a partially grooved hexagonal shape which creates interest through the play of light and shadow. The patterns can also be used to define separate areas within a space. The unique design was conceived by CCHE Lausanne SA.

  • Concrete slab according to DIN EN 1339
  • Without chamfer, sharp-edged
  • Integrated spacers
  • Particularly high concrete quality due to high-strength quartz, granite or basalt aggregates (no limestone)
  • Very low mass tolerance
  • Anti-slip and pedestrian safety according to DIN 51130 : R13
  • Products TÜV certified, CO2-neutral production
  • Use of natural aggregates only
  • On customer request with up to 50% recycled concrete
  • Use of UV-resistant colour pigments
  • Frost / de-icing salt resistance 10 times higher than required by DIN-NORM
  • Weather resistance, weight loss ≤ 0.1kg/m2 (DIN EN 1338 ≤ 1.0kg /m2)
  • Hydrothermal post-treatment in the production process to increase product durability
  • Abrasion resistance ≤ 18.5mm (DIN EN 1338 : ≤ 20mm)
  • Characteristic bending tensile strength (according to DIN EN 1339 : ≥ 5.0 MPa)

Dimensions

Dedale 50

100 x 86.6 x 12cm thickness

For up to the “medium” traffic load

Dedale 25

50 x 43.3 x 5cm thickness

For terraces or pedestrian walkways

Composition

Made of concrete with natural stone aggregates.

Finishes

nativo Grau

nativo Anthrazit

ferro Grau

ferro Anthrazit
