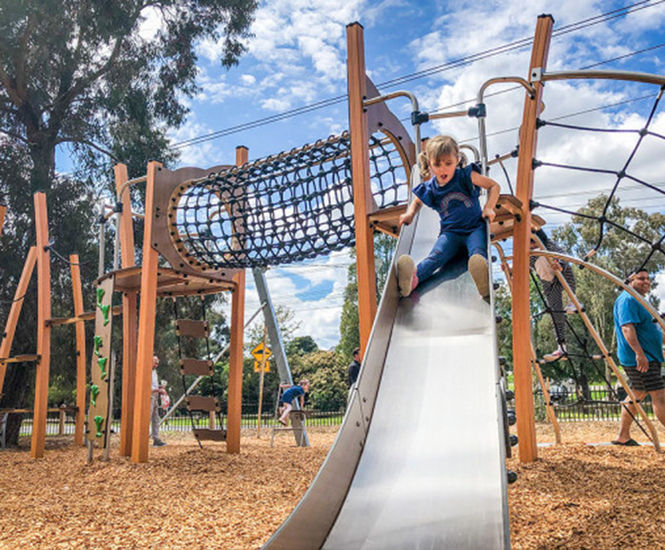

J5609-C® Kanopé multiplay equipment is a large outdoor play structure for up to 30 children aged 3 and above, designed for climbing, balancing, sliding, and social play. Made from painted galvanised steel, HPL panels, stainless steel, and polyamide fixings, it is suitable for high-use public spaces and offers 20 play functions in a timber-look finish.

  • Large play structure supporting up to 30 users with 20 play activities
  • Includes climbing, balancing, sliding, crawling, and social interaction features
  • Accessible from age 3, with a free fall height of 2.70 m
  • Timber-look colour and durable materials for outdoor environments
  • Certified by an independent laboratory for safety
  • Repairability score of 9.43/10
  • Non-slip platforms and vandal-resistant components

Applications

  • School playgrounds
  • Parks and public play areas
  • Community spaces
  • Holiday leisure parks
  • Shopping centre play zones
  • Residential developments

Dimensions

Length 10.63 m

Width 6.71 m

Height 3.60 m

Free fall height 2.70 m

Surface area 93.50 m²

Total weight 659.25 kg

Heaviest element 43.35 kg

Performance

Repairability 9.43/10

Materials

Painted galvanised steel posts 95 x 95 mm

13 mm HPL coloured panels

12.5 mm HPL non-slip platforms

40 mm stainless steel tubes

Polyamide fixings

2 mm stainless steel sliding surfaces

16 mm galvanised steel cable with polyester cover

Polypropylene climbing holds

Stainless or plated steel fixings with polyamide caps

Finish

Timber-look colour

Installation

2 installers required

Installation time 20 hours

Concrete volume 0.60 m³

Accreditations

Certified by an independent laboratory
