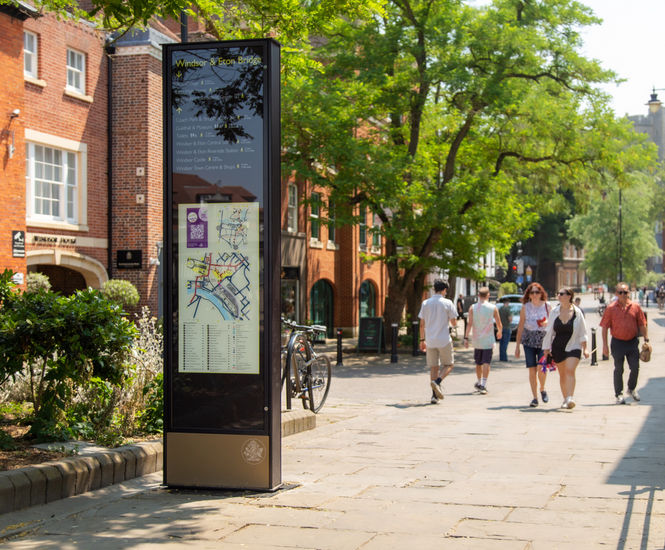

Barcelona monolith sign is made from powder-coated aluminium with a steel frame and toughened, low iron glass artwork panel. Custom sizes, beacon styles, and illumination options allow adaptation to any street or public space, with both permanent and temporary fixing methods available.

  • Monolith sign for public spaces and streetscapes
  • Digitally printed artwork protected by toughened glass
  • Customisable beacon shapes and heights
  • Optional illumination for beacon, artwork, or side panels
  • Choice of permanent or temporary installation
  • Powder-coated aluminium body with steel reinforcement
  • Multiple size and artwork area options

Applications

  • City streets
  • Public squares
  • Event spaces
  • Transport hubs
  • Parks
  • Commercial developments

Dimensions

W400 x H1600 x D166 mm / Artwork area: W352 x H1306 mm

W400 x H1800 x D166 mm / Artwork area: W352 x H1506 mm

W400 x H2000 x D166 mm / Artwork area: W352 x H1706 mm

W400 x H2300 x D166 mm / Artwork area: W352 x H2006 mm

W500 x H1600 x D166 mm / Artwork area: W452 x H1306 mm

W500 x H1800 x D166 mm / Artwork area: W452 x H1506 mm

W500 x H2000 x D166 mm / Artwork area: W452 x H1706 mm

W500 x H2300 x D166 mm / Artwork area: W452 x H2006 mm

W600 x H1600 x D166 mm / Artwork area: W552 x H1306 mm

W600 x H1800 x D166 mm / Artwork area: W552 x H1506 mm

W600 x H2000 x D166 mm / Artwork area: W552 x H1706 mm

W600 x H2300 x D166 mm / Artwork area: W552 x H2006 mm

W700 x H1600 x D166 mm / Artwork area: W652 x H1306 mm

W700 x H1800 x D166 mm / Artwork area: W652 x H1506 mm

W700 x H2000 x D166 mm / Artwork area: W652 x H1706 mm

W700 x H2300 x D166 mm / Artwork area: W652 x H2006 mm

W800 x H1600 x D166 mm / Artwork area: W752 x H1306 mm

W800 x H1800 x D166 mm / Artwork area: W752 x H1506 mm

W800 x H2000 x D166 mm / Artwork area: W752 x H1706 mm

W800 x H2300 x D166 mm / Artwork area: W752 x H2006 mm

Materials

Powder-coated aluminium body

Steel frame (with optional cross bracing)

10mm low iron, toughened glass or 10mm polycarbonate

Finish

Powder-coated

Options and variations

Beacon styles: flat, square, left side rounded, right side rounded, both sides rounded

Beacon heights: 8mm, 100mm, 200mm

Glazing: 10mm low iron toughened glass, 10mm polycarbonate with reverse print

Illumination: beacon, main artwork area, side panels, or none

Power: wired, solar, or none

Decoration: beacon, left/right side panel, front/back kickplate, or none

Fixing: permanent bolt down, permanent root fix, temporary root fix, temporary bolt down

Installation

Surface mounted or with foundation unit for smooth removal

Permanent or temporary fixing options
