Seat material Timber / wood
Planter material Mild steel
Dimensions (mm) 2525x700x700

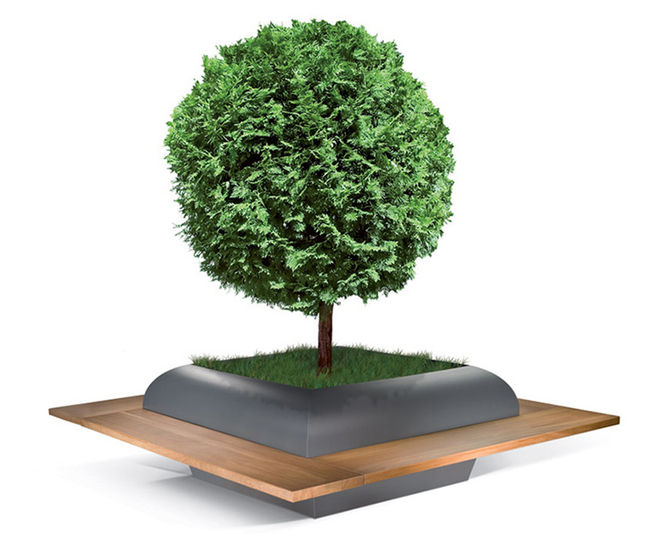

The bench-planter AL AIN is made in steel 15/10 thickness. The structure is pyramid-shaped with a square base, the band of the upper part is calendered with a radius of 160 mm. Inside the planter there’s a support structure in tubular steel 50x50x2 mm. The structure in tubular steel goes outside the planter and creates the supports, on which the seat of the bench is fixed. The bench is made by 4 elements in exotic hardwood 450x 2075 mm 40 mm thickness. The wooden parts are fixed to the tubular steel through specific screws. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes 15 mm diam. for the fixing to the ground through specific bolts (not provided).

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with AkzoNobel RAL colours at choice.

The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.


The bench-planter AL AIN is made in steel 15/10 thickness. The structure is pyramid-shaped with a square base, the band of the upper part is calendered with a radius of 160 mm. Inside the planter there’s a support structure in tubular steel 50x50x2 mm. The structure in tubular steel goes outside the planter and creates the supports, on which the seat of the bench is fixed. The bench is made by 4 elements in exotic hardwood 450x 2075 mm 40 mm thickness. The wooden parts are fixed to the tubular steel through specific screws. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes 15 mm diam. for the fixing to the ground through specific bolts (not provided).

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with AkzoNobel RAL colours at choice.

The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.





Downloads
  • Al Ain bench by LAB23 .DWG drawing
    Al Ain bench by LAB23 .DWG drawing
    132.01KB
    Download
  • Al Ain Bench Planter By LAB23 tech spec
    Al Ain Bench Planter By LAB23 tech spec
    3pp 434.72KB
    Download



Enquire
