Seat material Steel
Planter material Timber / wood
Dimensions (mm) 1600x1600x450/700

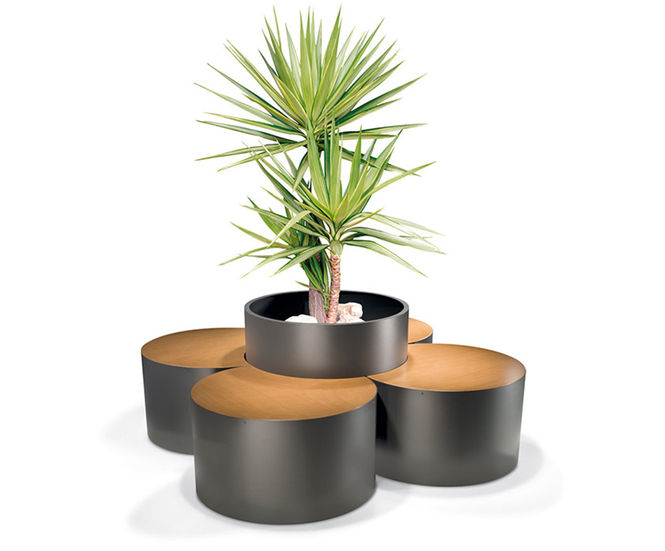

The main structure of the seat-planter D-PLANTER is in galvanised and polyester powder coated steel (or Corten treated with an oxidation cycle), thickness 20/10. D-PLANTER consists of a central planter, Ø 800 mm H 700 mm, and four semi-circular seats placed at 90 degrees of the planter and fixed to the latter with hexagonal M8 screws. The four seats are covered with solid and exotic multilayer-wood panels, T. 30 mm, treated with natural waterproof oils. The wood seats are fixed to the bearing structure with M6 screws and afterwards coated with stucco of the main colour of the wood used. Within each semi-circular seat, two steel EN10111DD11 plate, T. 30/10, are welded to the base with M10 holes for the ground fixing. All fixings are in stainless steel AISI 304.

Max dimensions:

Length: 1600 mm
Width: 1600 mm
Height of the seat: 450 mm
Height of the planter: 700 mm
Planter diameter: 800 mm

Material: steel and wood


The main structure of the seat-planter D-PLANTER is in galvanised and polyester powder coated steel (or Corten treated with an oxidation cycle), thickness 20/10. D-PLANTER consists of a central planter, Ø 800 mm H 700 mm, and four semi-circular seats placed at 90 degrees of the planter and fixed to the latter with hexagonal M8 screws. The four seats are covered with solid and exotic multilayer-wood panels, T. 30 mm, treated with natural waterproof oils. The wood seats are fixed to the bearing structure with M6 screws and afterwards coated with stucco of the main colour of the wood used. Within each semi-circular seat, two steel EN10111DD11 plate, T. 30/10, are welded to the base with M10 holes for the ground fixing. All fixings are in stainless steel AISI 304.

Max dimensions:

Length: 1600 mm
Width: 1600 mm
Height of the seat: 450 mm
Height of the planter: 700 mm
Planter diameter: 800 mm

Material: steel and wood
