Functions Filtration
Separation
Material Polypropylene
Type Non woven
Roll dimensions (w x l) 4.5 x 100
Weight (g/m2) 80
Tensile strength (kN/m) 6
Elongation at maximum load (%) MD - 36; CD - 42
Static puncture resistance (N) 1050
Cone drop penetration (mm) 48
Water permeability (m/sec) 144 x 10-3



Lotrak® 80 is a mechanically-bonded non-woven geotextile with market established technical and hydraulic properties to address every day industry requirements of separation and filtration.

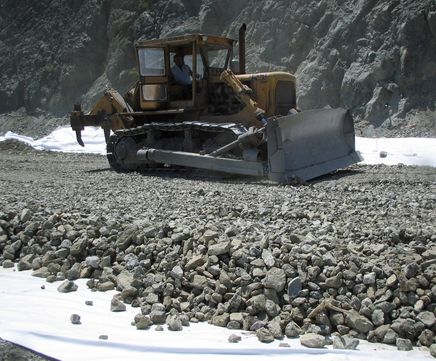

Lotrak® 80 acts as a basic separator beneath selected granular materials and for lining French or narrow trench drains. The main purpose of this geotextile is to prevent the loss of construction aggregates into the underlying soil and address membrane protection applications.

Benefits

  • Excellent separator
  • Performance

Main applications

  • Sustainable urban drainage systems (SuDS)
  • French drains
  • Narrow trench drains


Lotrak® 80 is a mechanically-bonded non-woven geotextile with market established technical and hydraulic properties to address every day industry requirements of separation and filtration.

Lotrak® 80 acts as a basic separator beneath selected granular materials and for lining French or narrow trench drains. The main purpose of this geotextile is to prevent the loss of construction aggregates into the underlying soil and address membrane protection applications.
