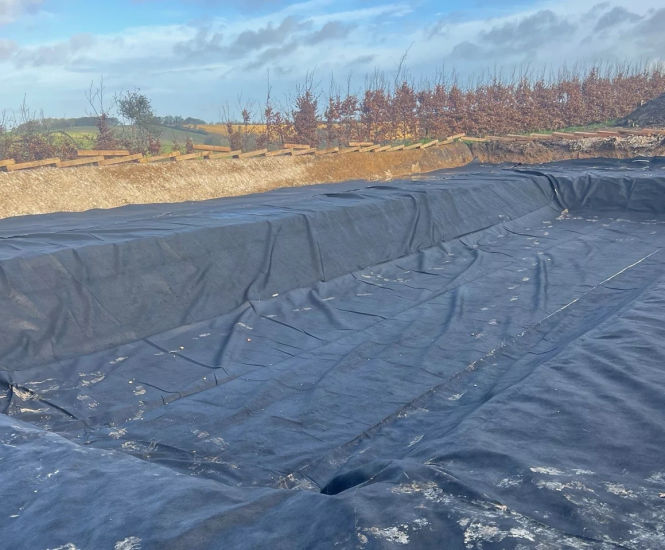

Terram Pond Liner Protection Geotextile (PPG) is a nonwoven, UV-stabilised polypropylene geotextile made to protect geomembranes in pond and attenuation tanks. Manufactured for flexibility, it comes in 5 versions: PPG 150 White (2m x 200m), PPG 200 White (2m x 60m), PPG 250 White (2m x 200m), PPG 250 Black (2m x 200m), and PPG 275 Black (2m x 50m).

  • Nonwoven geotextile

  • Design to protect geomembranes in ponds and attenuation liners

  • High puncture resistance

  • Lightweight and easy to handle

  • High resistance to chemicals and microorganisms

  • High elongation at break

Applications

  • Geomembrane protection

  • Pond liner protection

  • Attenuation tank liner protection

Dimensions

Dimension

PPG 150

White

PPG 200

White

PPG 250

White

PPG 250

Black

PPG 275

Black

Standard Role Length (m)

200

60

200

200

50

Standard Role Width (m)

2

2

2

2

2

Max Role Width (m)

6

6

6

6

6

Gross Role Weight (kg)

60

24

100

100

27.5

Materials

Made from UV-stabilised, high tenacity, virgin polypropylene fibres

Manufacture

Mechanically and thermally bonded nonwoven process

Performance

Properties

Test Method

Unit

PPG 150

White

PPG 200

White

PPG 250

White

PPG 250

Black

PPG 275

Black

Tensile Strength

EN ISO 10319

kN/m

11

15

17

17

20

Tensile Elongation

EN ISO 10319

%

80

80

80

80

80

CBR Puncture Resistance

EN ISO 12236

N

1500

2200

2800

2800

3100

Areal Density

EN ISO 9864

gm2

150

200

250

250

275

Weathering (UV Exposure)

EN ISO 12224

Days

30

30

30

30

30

Combined ageing

(Oxidation, temperature and moisture)

EN ISO 13438

Service Life

(Years)

100

100

100

100

100
