Functions Reinforcement
Material Polypropylene
Type Woven
Roll dimensions (w x l) 5 x 100
Tensile strength (kN/m) 16
Elongation at maximum load (%) 10
Static puncture resistance (N) 3200
Cone drop penetration (mm) 12
Water permeability (m/sec) 10 x 10-3

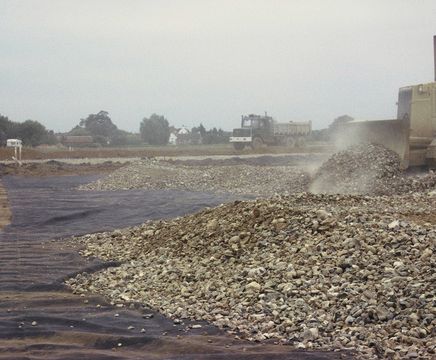

Lotrak® 25R is a woven polypropylene (PP) geotextile used as a basic reinforcement fabric in a wide range of civil engineering applications.

Designed to provide effective reinforcement to weak sub grades and absorb stresses by heavy traffic, Lotrak® 25R provides higher tensile strength and CBR properties over standard geotextile grades, particularly for soft ground.

Benefits

  • Lightweight reinforcement
  • High strength
  • Effective separation

Main applications

  • Access roads (forestry and windfarms)
  • Construction projects, eg coastal protection and unpaved roads
  • Waterways and flood prevention systems
  • Landfills


Lotrak® 25R is a woven polypropylene (PP) geotextile used as a basic reinforcement fabric in a wide range of civil engineering applications.

Designed to provide effective reinforcement to weak sub grades and absorb stresses by heavy traffic, Lotrak® 25R provides higher tensile strength and CBR properties over standard geotextile grades, particularly for soft ground.

Benefits

  • Lightweight reinforcement
  • High strength
  • Effective separation

Main applications

  • Access roads (forestry and windfarms)
  • Construction projects, eg coastal protection and unpaved roads
  • Waterways and flood prevention systems
  • Landfills
