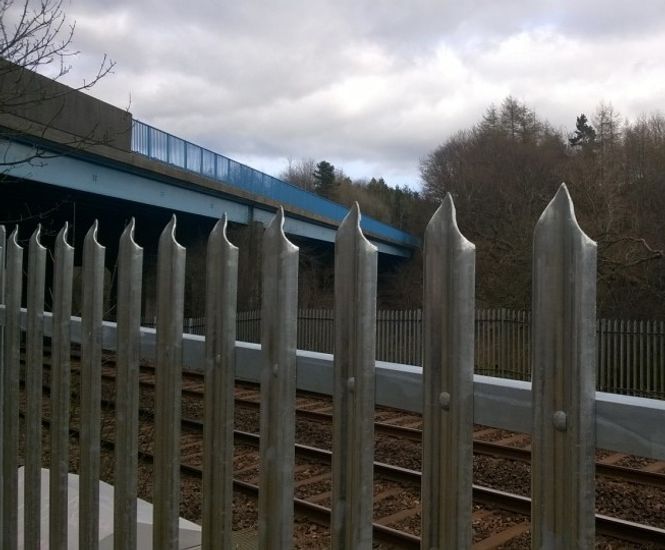

Lochrin Palisade Security Fencing is made from steel and designed for permanent site perimeter protection. Supplied in kit form, this fencing fits level or sloping ground and is suitable for general or high security with pale heights from 0.9m to 5.0m and 'D' or 'W' section profiles.

  • Steel security fencing system for site perimeters
  • Kit form supply for quick installation
  • Pales follow ground contours for reduced installation time
  • 'W' section pales (2.5mm or 3mm), 'D' section pales (3mm or 4mm) variants
  • Tamper-resistant fittings help prevent removal of fixings
  • Can be bolted onto concrete or set in ground with concrete reinforcement
  • Complies with BS EN ISO 1461 for hot-dip galvanising

Applications

  • School boundaries
  • Allotments
  • Industrial units
  • Railway perimeters
  • Utility compounds

Dimensions

Heights: 0.9m to 5.0m

Standard panel width: 2.75m

Pale thickness: 'W' section 2mm, 2.5mm, 3mm; 'D' section 3mm, 4mm

Materials

Steel

Finish

Hot-dip galvanised to BS EN ISO 1461

Option for powder coating in RAL colours

Options and variations

'D' or 'W' section pales

Pale heads: rounded, rounded & notched, pointed, triple pointed

Horizontal support rail sizes: 45×45×6mm, 50×50×6mm, 65×50×6mm, 75×50×8mm

17–28 pales per panel

Installation

Kit format for site assembly

Suits concrete bolt down or in-ground post installation with concrete reinforcement

Panels designed to follow ground contour and rake

Supplied with cup square fixing bolts and post/rail connectors

Product accreditations

Complies with BS EN ISO 1461
