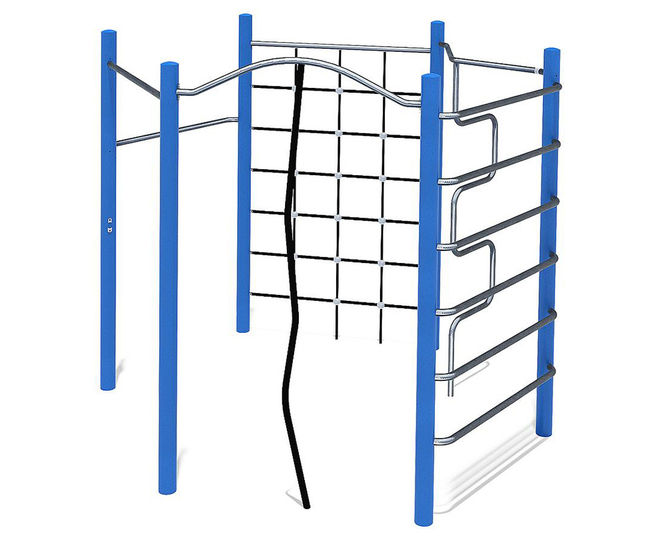

Hexagonal unit is a steel playground climbing structure designed to encourage active play for children aged 3 and above. Made from galvanised and powder-coated steel with stainless steel elements, it includes a climbing net, horizontal bars, climbing rope, and spiral climbing rod, all in blue and grey finishes.

  • Playground climbing structure with hexagonal layout

  • Made from galvanised and powder-coated steel for durability

  • Includes stainless steel bars, climbing net, rope, and spiral rod

  • Designed for children from 3 years old

  • Blue and grey colour scheme (RAL 5015, RAL 7035)

  • Requires minimal space and impact protection area

Applications

  • Public playgrounds

  • School play areas

  • Parks and recreation spaces

  • Outdoor activity zones

Technical data

Minimal space

2,75x6,46x4,00 m

Fall protection netto

33,5 m²

Freefall height

220 cm

Biggest part

300x120x10 cm

Heaviest part

80 kg

Foundation level

ET 900

Foundation

8x CF

Soil quality

at least sand

Catalogue index

Climbing unit Climbing trestle Hexagonal unit

Dimensions

Minimum space 2.75 x 6.46 x 4.00 m

Freefall height 220 cm

Impact protection area 33.5 m²

Largest part 300 x 120 x 10 cm

Heaviest part 80 kg

Materials

Galvanised and powder-coated steel posts

Stainless steel bars and elements

Plastic-coated steel cable for net and rope

HPL climbing boards

GFK sanded grips

Colours

Blue (RAL 5015)

Light grey (RAL 7035)

Installation

Requires 2 people, estimated 4 hours assembly

8 concrete foundations (type CF) needed

Minimum ground quality: sand

Sustainability

CO2e emissions of materials and production process considered in certification
